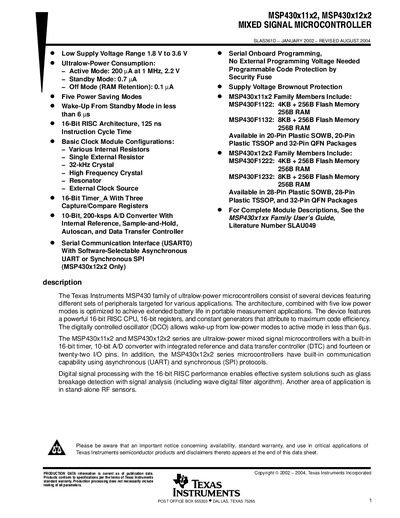

Texas Instruments MSP430x11x2/MSP430x12x2 Mixed Signal Microcontroller Datasheet
The document details the MSP430x11x2 and MSP430x12x2 series of ultralow-power mixed signal microcontrollers. These devices feature a powerful 16-bit RISC CPU, programmable code protection, and five power-saving modes optimized for extended battery life in portable measurement applications.
The MSP430x11x2 family includes members with 4KB or 8KB of Flash memory and 256B of RAM. The MSP430x12x2 family adds built-in communication capability using asynchronous UART and synchronous SPI protocols, along with a high-frequency crystal resonator option. Both families offer various package options including SOWB, TSSOP, and QFN.
Texas Instruments MSP430X11X2 specifications
| Supply Voltage Range | 1.8 V to 3.6 V |
|---|---|
| Flash Memory | 4 KB + 256 B (MSP430F1122) to 8 KB + 256 B (MSP430F1132/1232) |
| RAM | 256 B |
| ADC Resolution | 10‑bit |
Source: Texas Instruments MSP430x11x2 and MSP430x12x2 Datasheet
All Texas Instruments MSP430X11X2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the active mode current consumption of this microcontroller?
The active mode consumes 200 µA at 1 MHz and 2.2 V.
From: Texas Instruments MSP430x11x2/MSP430x12x2 Mixed Signal Microcontroller Datasheet
What supply voltage range does the MSP430x11x2 support?
It operates from 1.8 V up to 3.6 V.
From: Texas Instruments MSP430x11x2 and MSP430x12x2 Datasheet
How much flash memory is provided in the MSP430F1132 variant?
The MSP430F1132 includes 8 KB of flash memory plus 256 B of auxiliary storage.
From: Texas Instruments MSP430x11x2 and MSP430x12x2 Datasheet
