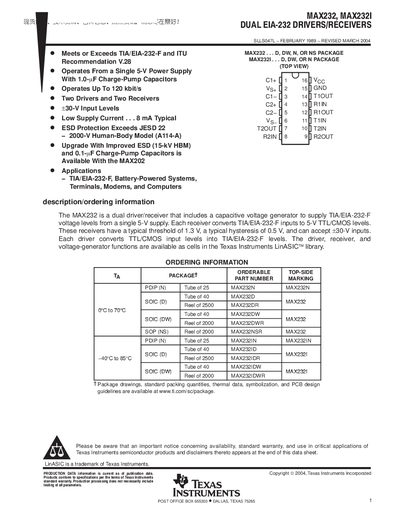

TEXAS INSTRUMENTS MAX232 MAX2321 handbook
The MAX232 family provides dual EIA‑232 drivers and receivers that operate from a single 5‑V supply and include a charge‑pump voltage generator. The devices support up to 120 kbit/s data rates and feature low supply current, ESD protection, and a wide input voltage range.
The document includes ordering information, electrical characteristics for driver and receiver sections, recommended operating conditions, packaging options, mechanical dimensions, and an important notice about product warranties and usage restrictions.
Texas Instruments MAX2321 specifications
| Supply voltage (VCC) | 4.5 V – 5.5 V |
|---|---|
| Maximum data rate | 120 kbit/s |
| ESD protection (HBM) | 15 kV |
All Texas Instruments MAX2321 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the MAX232 require?
The MAX232 operates from a single 5‑V supply with a recommended range of 4.5 V to 5.5 V.
What is the maximum data rate supported by the MAX232?
The device can operate up to 120 kbit/s.
What supply voltage does the MAX232 operate from?
It operates from a single 5‑V supply, with a recommended range of 4.5 V to 5.5 V.
From: Texas Instruments MAX232/MAX2321 Dual EIA-232 Driver/Receiver Datasheet
What is the maximum data rate supported by the MAX232?
The device can handle data rates up to 120 kbit/s.
From: Texas Instruments MAX232/MAX2321 Dual EIA-232 Driver/Receiver Datasheet
What is the typical supply current of the MAX232?
The typical supply current is about 8 mA.
From: Texas Instruments MAX232/MAX2321 Dual EIA-232 Driver/Receiver Datasheet
Which package types are available for the MAX232?
Available packages include PDIP (N), SOIC (D/DW), and SOP (NS).
From: Texas Instruments MAX232/MAX2321 Dual EIA-232 Driver/Receiver Datasheet
