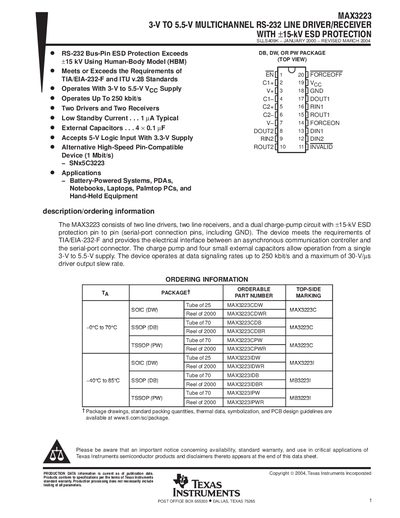

Texas Instruments MAX3223 RS-232 Line Driver/Receiver Datasheet
The MAX3223 is a dual-channel RS-232 transceiver designed for battery-powered systems such as PDAs, notebooks, and hand-held equipment. It integrates two line drivers, two line receivers, and a dual charge-pump circuit with +15-kV ESD protection to interface asynchronous communication controllers with serial-port connectors.
The device operates from a single 3-V to 5.5-V supply voltage and supports data signaling rates up to 250 kbit/s. It features flexible power management options, including an auto-powerdown mode that disables driver outputs when no valid RS-232 signal is sensed, reducing supply current to approximately 1 µA.
Texas Instruments MAX3223 specifications
| Supply Voltage Range | 3 V to 5.5 V |
|---|---|
| Maximum Data Rate | 250 kbit/s |
| ESD Protection Level | +15-kV |
| Number of Drivers and Receivers | Two Drivers and Two Receivers |
| Typical Standby Current | 1 µA |
Source: Texas Instruments MAX3223 RS-232 Line Driver/Receiver Datasheet
All Texas Instruments MAX3223 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating supply voltage range?
The device operates with a single supply voltage ranging from 3 V to 5.5 V.
From: Texas Instruments MAX3223 RS-232 Line Driver/Receiver Datasheet
What is the maximum data signaling rate?
The MAX3223 can operate at data signaling rates up to 250 kbit/s.
From: Texas Instruments MAX3223 RS-232 Line Driver/Receiver Datasheet
What supply voltage range does the MAX3223 support?
The MAX3223 operates from a single supply voltage between 3 V and 5.5 V.
What is the maximum data signaling rate of the MAX3223?
It can handle data rates up to 250 kbit/s.
