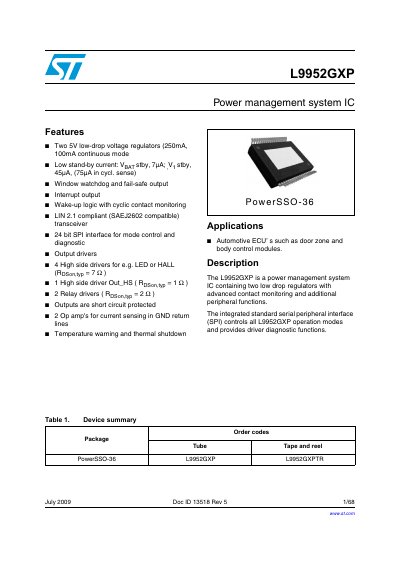

STMicroelectronics L9952GXP Power Management System IC Datasheet
The L9952GXP is a Power Management System (PMS) integrated circuit designed primarily for automotive Electronic Control Units (ECUs), such as door zone and body control modules. The device integrates two low-drop voltage regulators (V1 and V2) with advanced contact monitoring capabilities to ensure system reliability.
Key features include a LIN 2.1 compliant transceiver, a 24-bit SPI interface for mode control and diagnostics, and multiple output drivers including four high-side drivers, one high-side driver, two relay drivers, and operational amplifiers for current sensing. The IC also incorporates protection mechanisms such as window watchdogs, failsafe outputs, thermal shutdown, and temperature warning.
STMicroelectronics L9952GXP specifications
| Regulator Output Voltage | 5V |
|---|---|
| Regulator Current (Continuous) | 100mA, 250mA |
| Stand-by Current (Vga7stby) | 7uA |
| Stand-by Current (Vy stby) | 45uA |
| Interface Type | 24 bit SPI |
| LIN Protocol Compliance | LIN 2.1 compliant (SAEJ2602 compatible) |
| Relay Drivers | 2 Relay drivers |
Source: STMicroelectronics L9952GXP Power Management System IC Datasheet
All STMicroelectronics L9952GXP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What are the main applications for the L9952GXP?
The device is designed for automotive ECUs such as door zone and body control modules.
From: STMicroelectronics L9952GXP Power Management System IC Datasheet
What is the stand-by current of the L9952GXP?
The Vga7stby current is 7uA, while Vy stby is 45uA (or 75uA in cyclic sense).
From: STMicroelectronics L9952GXP Power Management System IC Datasheet
What is the primary purpose of the L9952GXP IC?
It integrates all functions to build a complete and configurable supply solution while providing comprehensive fail-safe functionality.
From: AN2751 L9952GXP Power Management System IC Application Note
What is the document revision history date?
The initial release of this application note was on 18-Jul-2008.
From: AN2751 L9952GXP Power Management System IC Application Note
