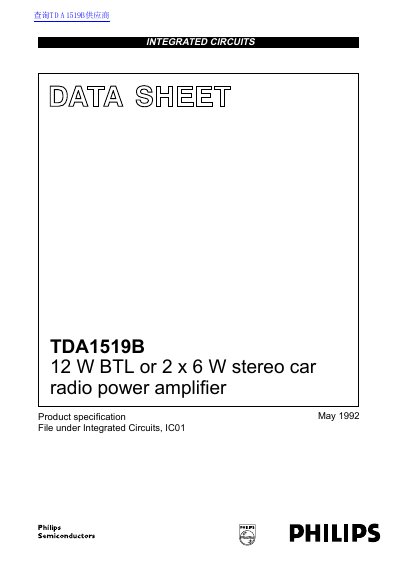

TDA1519B is a 12W BTL or 2x6W stereo car radio power amplifier. It features high output power, low offset voltage, fixed gain, good ripple rejection, etc.
The Philips TDA1519B is an integrated class-B dual output amplifier designed primarily for car radio applications. It operates in either Bridge Tied Load (BTL) mode delivering up to 12 W into 8 Ohms, or Stereo mode delivering up to 6 W per channel into 4 Ohms.
| Output power (BTL, 8 Ohm) | 12 W |
|---|---|
| Output power (Stereo, 4 Ohm) | 6 W |
| Supply voltage range | 6.0 to 18.0 V |
| Closed loop voltage gain | 40 dB |
The device can operate with a supply voltage up to 18 V.
It provides 12 W of output power when used in Bridge Tied Load configuration.
The device can withstand a crystal temperature up to 150 °C.
