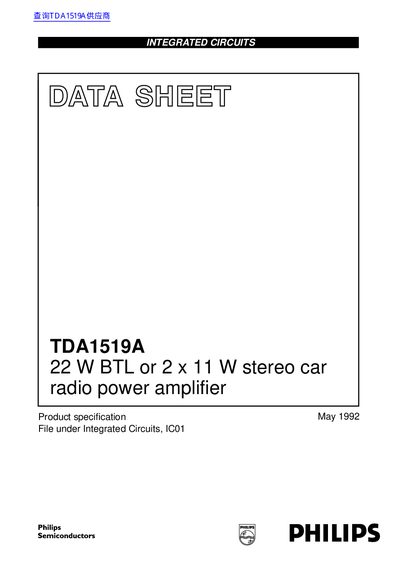

TDA1519A is a dual output power amplifier from Philips. It is designed for car radio applications. The product features high output power, low output offset voltage, fixed gain, good ripple rejection and load dump protection.
The TDA1519A is an integrated class-B dual output amplifier designed primarily for car radio applications. It features a Bridge Tied Load (BTL) capability delivering up to 22 W, or stereo operation with two channels of 11 W each. The device includes built-in protection against reverse polarity, load dumps, and short circuits.
| Output Power (BTL) | 22 W |
|---|---|
| Output Power (Stereo) | 6 W per channel |
| Supply Voltage Range | 6.0 V to 17.5 V |
| Total Quiescent Current | 80 mA |
| Closed Loop Voltage Gain | 40 dB |
| Input Impedance (Stereo) | 50 kΩ |
The device is primarily developed for car radio applications.
Yes, it is compatible with the TDA1519B, except regarding output power.
The maximum operating voltage is 17.5 V, while the non-operating limit is 30 V.
