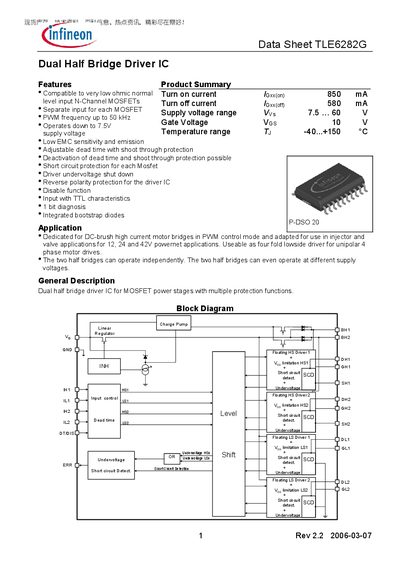

Infineon TLE6282G Dual Half Bridge Driver IC Datasheet
The Infineon TLE6282G is a dual half‑bridge driver IC designed for MOSFET power stages with extensive protection functions. It supports independent operation of each half‑bridge, allowing different supply voltages and providing features such as adjustable dead‑time, shoot‑through protection, short‑circuit detection, and undervoltage shutdown.
The datasheet details electrical characteristics, maximum ratings, functional ranges, and recommended application circuits, including injector/valve drive examples. It also includes pin definitions, timing diagrams, and package information for the P‑DSO 20 package.
Infineon TLE6282G specifications
| Supply voltage (Vs) | 7.5 V – 60 V |
|---|---|
| Operating temperature range (Tj) | -40 °C to +150 °C |
| PWM frequency | up to 50 kHz |
| Adjustable dead‑time range | 100 ns – 3.1 µs (1.5 V–3.5 V) |
| Short‑circuit detection threshold (Low side) | 0.5 V – 1.0 V |
| High‑level input voltage (VIH) | 2.0 V |
Source: Infineon TLE6282G Datasheet
All Infineon TLE6282G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the TLE6282G?
The device operates from 7.5 V up to 60 V.
What is the maximum PWM frequency supported?
The driver can handle PWM frequencies up to 50 kHz.
