Start here

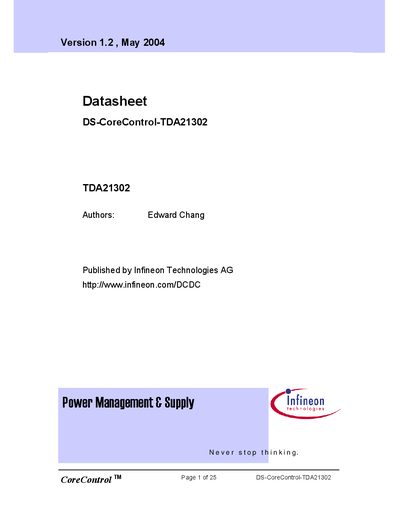

Infineon TDA21302 Datasheet
The TDA21302 is a multi‑phase DC‑DC buck‑converter controller designed for GHz‑class CPU voltage regulation. It integrates all control functions needed for 2‑to‑4 interleaved buck stages, offering high output current, low ripple, and efficient thermal performance.
Key features include automatic phase selection, active droop compensation, programmable switching frequency (50 kHz‑400 kHz), over‑current protection, and a built‑in voltage‑identification DAC. Typical applications are Intel processor voltage regulators, low‑output‑voltage high‑current DC‑DC converters, and voltage‑regulator modules.
Infineon TDA21302 specifications
| VCC Supply Voltage | -0.3 V to 7 V |
|---|---|
| Maximum Junction Temperature | 125 °C |
| Storage Temperature Range | -65 °C to 150 °C |
| ESD Rating (Human Body Model) | 2 kV |
| Bias Supply Current (PWM pins) | 12 mA – 16 mA |
| Power‑On‑Reset Threshold | 4.2 V – 45 V |
Source: Infineon TDA21302 Datasheet
All Infineon TDA21302 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of pin 1 on the TDA21302?
Pin 1 is the OVP (Over‑Voltage Trip) output.
What voltage range can be applied to the VCC pin?
The VCC pin can be supplied with a voltage between –0.3 V and 7 V.
What is the function of pin 1?
Pin 1 is the OVP (Over‑Voltage Trip) output.
What is the maximum junction temperature rating?
The device is rated up to 125 °C junction temperature.
