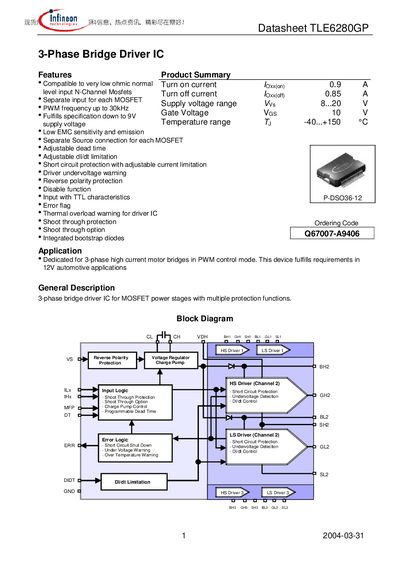

Infineon TLE6280GP 3-Phase Bridge Driver IC Datasheet
The TLE6280GP is a 3‑phase bridge driver IC designed for high‑current motor bridges in automotive PWM applications. It integrates a charge‑pump voltage regulator, bootstrap diodes, and a full set of protection features such as short‑circuit detection, shoot‑through protection, undervoltage warning and over‑temperature warning.
The device operates from a wide supply range, supports PWM frequencies up to 30 kHz, and provides adjustable dead‑time via an external resistor. It is supplied in a 36‑lead P‑DSO package and is compatible with external MOSFETs having gate charges up to 250 nC.
Infineon TLE6280GP specifications
| Supply voltage range | 8 V – 40 V |
|---|---|
| PWM frequency | up to 30 kHz |
| Operating temperature range | -40 °C – +150 °C |
| Package | P‑DSO36‑12 |
Source: Infineon TLE6280GP 3-Phase Bridge Driver IC Datasheet
All Infineon TLE6280GP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum PWM frequency supported by the TLE6280GP?
The device supports PWM frequencies up to 30 kHz.
What supply voltage range can the driver operate in?
The driver operates from 8 V up to 40 V, with functionality down to 8 V.
What is the supply voltage range of the TLE6280GP?
The device operates from 8.20 V and can be used over a supply range of 8 V to 40 V.
How can the dead time be adjusted?
Dead time is set by adding an external resistor from the DT pin to ground, allowing a range from 100 ns to 4 µs.
