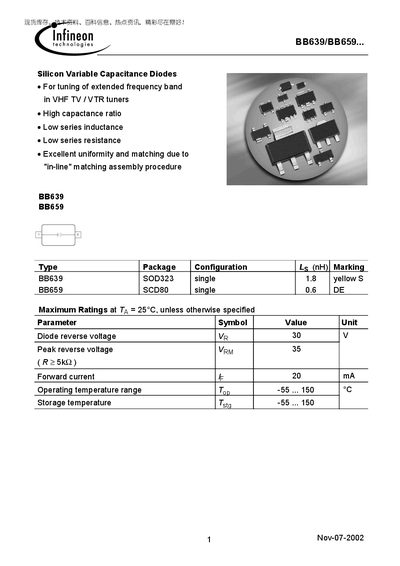

Infineon BB639/BB659 Silicon Variable Capacitance Diodes Datasheet
The BB639 and BB659 are silicon variable capacitance diodes designed for tuning extended frequency bands in VHF TV and VTR tuners. They offer a high capacitance ratio, low series inductance and resistance, and excellent uniformity due to an in‑line matching assembly procedure.
The datasheet provides maximum ratings, electrical characteristics at 25 °C, capacitance values at various bias voltages, capacitance ratios, and temperature coefficients. Package markings and configurations are also listed for both part numbers.
Infineon BB659 specifications
| Diode reverse voltage (Ve) | 30 V |
|---|---|
| Peak reverse voltage (Vem) | 35 V |
| Forward current (If) | 20 mA |
| Operating temperature range | -55 °C to 150 °C |
| Storage temperature range | -55 °C to 150 °C |
| Diode capacitance (C_G) at Vp=1 V, f=1 MHz | 36‑40 pF |
| Capacitance ratio (C1/C2) | 13.5‑14.7 |
| Series resistance (Rs) | 0.65 Ω |
Source: Infineon BB639/BB659 Silicon Variable Capacitance Diodes Datasheet
All Infineon BB659 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the reverse voltage rating of the BB639/BB659 diodes?
The diodes are rated for a reverse voltage of 30 V.
From: Infineon BB639/BB659 Silicon Variable Capacitance Diodes Datasheet
What temperature range can the BB639/BB659 operate in?
They operate from –55 °C up to 150 °C.
From: Infineon BB639/BB659 Silicon Variable Capacitance Diodes Datasheet
What is the maximum reverse voltage for the BB639/BB659 diodes?
The maximum reverse voltage (Ve) is 30 V.
From: Infineon BB639/BB659 Silicon Variable Capacitance Diodes Datasheet
What is the operating temperature range of these diodes?
They operate from –55 °C up to 150 °C.
From: Infineon BB639/BB659 Silicon Variable Capacitance Diodes Datasheet
What is the maximum reverse voltage for the BB639/BB659 diodes?
The maximum reverse voltage is 30 V.
From: Infineon BB639/BB659 Silicon Variable Capacitance Diodes Datasheet
What forward current rating do the BB639/BB659 diodes have?
They are rated for a forward current of 20 mA.
From: Infineon BB639/BB659 Silicon Variable Capacitance Diodes Datasheet
