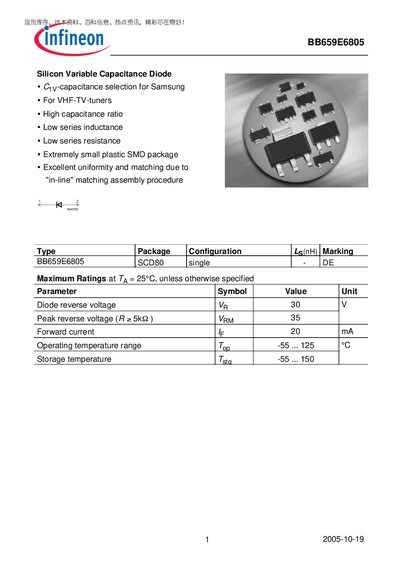

Infineon BB659E6805 Silicon Variable Capacitance Diode Datasheet
The BB659E6805 is a silicon variable capacitance diode designed for VHF‑TV tuners and other high‑frequency applications. It offers a high capacitance ratio, low series inductance and resistance, and comes in an extremely small SMD package with excellent uniformity due to an in‑line matching assembly procedure.
The document provides maximum ratings, electrical characteristics (DC and AC), package dimensions, and marking information, along with legal and safety notices from Infineon Technologies AG.
Infineon BB659E6805 specifications
| Reverse voltage (Va) | 30 V |
|---|---|
| Peak reverse voltage (Vam) | 35 V |
| Forward current (Ik) | 20 mA |
| Operating temperature range | -55 °C to 125 °C |
| Storage temperature range | -55 °C to 150 °C |
| Diode capacitance at Va=2 V, f=1 MHz | 27.5 pF (min) – 32 pF (max) |
| Capacitance ratio Cyy/Crog | 13.5 – 14.7 |
Source: Infineon BB659E6805 Silicon Variable Capacitance Diode Datasheet
All Infineon BB659E6805 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum reverse voltage for the BB659E6805?
The diode can withstand a reverse voltage of up to 30 V, with a peak reverse voltage rating of 35 V.
From: Infineon BB659E6805 Silicon Variable Capacitance Diode Datasheet
What temperature range can the BB659E6805 operate in?
It operates from –55 °C up to 125 °C, and can be stored between –55 °C and 150 °C.
From: Infineon BB659E6805 Silicon Variable Capacitance Diode Datasheet
What is the reverse voltage rating of the BB659E6805 diode?
The diode is rated for a reverse voltage of 30 V.
From: Infineon BB659E6805 Silicon Variable Capacitance Diode Datasheet
Which package does the BB659E6805 use?
It is supplied in the SCD80 plastic SMD package.
From: Infineon BB659E6805 Silicon Variable Capacitance Diode Datasheet
