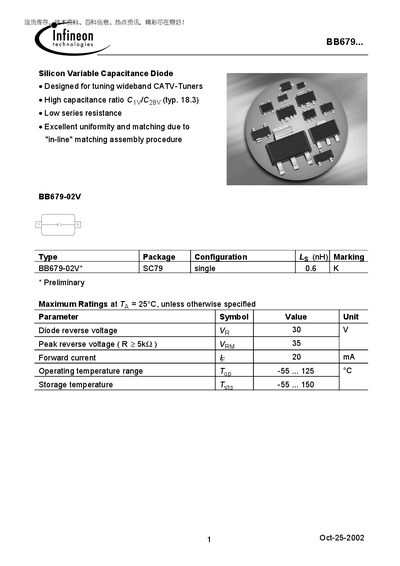

Infineon BB679-02V Silicon Variable Capacitance Diode Datasheet
The BB679-02V is a silicon variable capacitance diode designed for tuning wideband CATV tuners. It offers a high capacitance ratio and low series resistance thanks to an in‑line matching assembly.
Key specifications include a reverse voltage of 30 V, peak reverse voltage of 35 V, forward current of 20 mA, operating temperature range from –55 °C to 125 °C, and typical capacitance of about 47.5 pF at 1 V, 1 MHz.
Infineon BB679-02V specifications
| Capacitance ratio (typ.) | 18.3 |
|---|---|
| Forward current (Ir) | 20 mA |
| Operating temperature range | -55 °C to 125 °C |
| Storage temperature range | -55 °C to 150 °C |
Source: Infineon BB679-02V Silicon Variable Capacitance Diode Datasheet
All Infineon BB679-02V documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What temperature range can the BB679-02V operate in?
It operates from –55 °C up to 125 °C.
From: Infineon BB679-02V Silicon Variable Capacitance Diode Datasheet
What is the forward current rating of the BB679-02V?
The forward current rating is 20 mA.
From: Infineon BB679-02V Silicon Variable Capacitance Diode Datasheet
What is the maximum reverse voltage rating for the BB679-02V?
The diode can withstand a reverse voltage of up to 30 V.
From: Infineon BB679-02V Silicon Variable Capacitance Diode Datasheet
What is the forward current limit for the BB679-02V?
The forward current is limited to 20 mA.
From: Infineon BB679-02V Silicon Variable Capacitance Diode Datasheet
