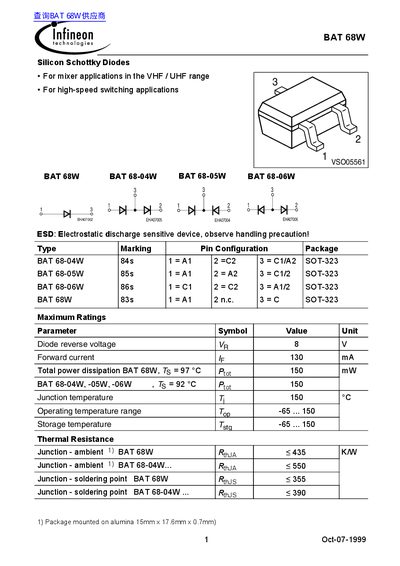

Infineon BAT 68W Silicon Schottky Diodes Datasheet
This document is a technical datasheet for the Infineon BAT 68W series of Silicon Schottky Diodes. The components are specifically intended for use in mixer applications within the VHF and UHF frequency ranges, as well as for high-speed switching applications.
The datasheet provides detailed electrical characteristics, including breakdown voltage, reverse current, forward voltage, diode capacitance, and differential forward resistance. It also includes maximum ratings such as reverse voltage (8V), forward current (130mA), and power dissipation limits depending on the specific package variant.
Infineon BAT 68 specifications
| Diode reverse voltage | 8 V |
|---|---|
| Forward current | 130 mA |
| Total power dissipation (BAT 68W) | 150 mW |
| Junction temperature | 150 °C |
| Operating temperature range | -65 ... 150 |
| Breakdown voltage (typical) | 8 V |
| Reverse current (VR=1V, Ta=60°C) | 1.2 pA |
| Diode capacitance | 1 pF |
All Infineon BAT 68 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the maximum forward current and reverse voltage ratings for these diodes?
The device supports a forward current of 130 mA and has a maximum reverse voltage rating of 8 V.
What is the maximum total power dissipation at an ambient temperature of 97 °C?
The BAT 68W model can dissipate up to 150 mW when the ambient temperature is 97 °C.
What applications is the BAT 68-08S diode array intended for?
The device is designed for mixer applications in the VHF / UHF range and for high-speed switching applications.
From: Infineon BAT 68-08S Silicon Schottky Diode Array Preliminary Data
What is the maximum forward current rating for the BAT 68-08S?
The maximum forward current rating is 130 mA.
From: Infineon BAT 68-08S Silicon Schottky Diode Array Preliminary Data
What are the recommended applications for the BAT 68 diode?
The device is suitable for mixer applications in the VHF / UHF range and for high-speed switching applications.
What is the maximum junction temperature?
The maximum junction temperature is 150 °C.
