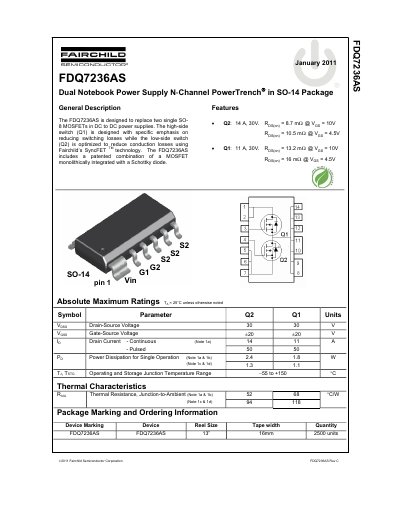

FAIRCHILD FDQ7236AS Dual Notebook Power Supply N-Channel PowerTrench in SO-14 Package handbook
The FDQ7236AS is a dual N-channel MOSFET device designed to replace two single SO-8 MOSFETs in DC to DC power supply applications. It features Fairchild's SyncFET technology, which integrates a MOSFET monolithically with a Schottky diode to reduce switching and conduction losses. The device consists of a high-side switch (Q1) optimized for reducing switching losses and a low-side switch (Q2) optimized for reducing conduction losses.
Read onlineFairchild SO-14 specifications
| Drain-Source Voltage | 30 V |
|---|---|
| Pulsed Drain Current | 50 A |
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | SO-14 |
| Technology | SyncFET |
Source: FAIRCHILD FDQ7236AS Dual Notebook Power Supply N-Channel PowerTrench in SO-14 Package handbook
All Fairchild SO-14 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current for each switch?
The Q1 switch supports a maximum of 2.1 A, while the Q2 switch supports up to 3.4 A.
From: FAIRCHILD FDQ7236AS Dual Notebook Power Supply N-Channel PowerTrench in SO-14 Package handbook
What is the operating and storage junction temperature range?
The device operates and stores within a range of -55 to +150 °C.
From: FAIRCHILD FDQ7236AS Dual Notebook Power Supply N-Channel PowerTrench in SO-14 Package handbook
