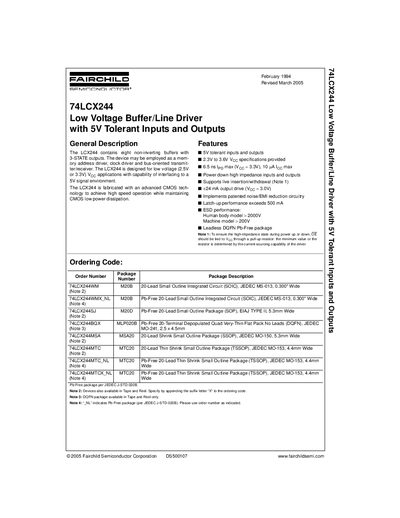

LCX244 is a low voltage buffer/line driver with 5V tolerant inputs and outputs
The 74LCX244 contains eight non-inverting buffers with 3-STATE outputs designed for low voltage (2.5V or 3.3V) applications while interfacing to a 5V signal environment. It features patented noise/EMI reduction circuitry and latch-up performance exceeding 500 mA.
| Number of Buffers | Eight non-inverting buffers |
|---|---|
| Input Voltage Tolerance | 5V tolerant |
| Output Drive Current (Vcc=3.0V) | +24 mA / -12 mA |
| Propagation Delay Max (Vcc=3.3V) | 6.5 ns |
| Latch-up Performance | > 500 mA |
The device contains eight non-inverting buffers.
