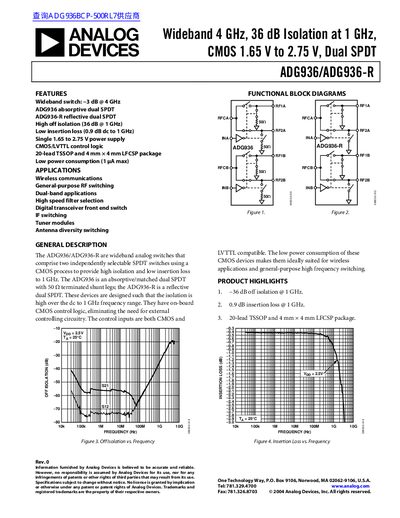

ANALOG DEVICES Wideband 4 GHz 36 dB Isolation at 1 GHz CMOS 1.65 V to 2.75 V Dual SPDT ADG936/ADG936-R Manual
Datasheet 16 pages · 271 KB · EN
The document describes the ADG936 (absorptive dual SPDT) and ADG936-R (reflective dual SPDT) wideband analog switches. These devices operate up to 4 GHz with a single CMOS power supply ranging from 1.65 V to 2.75 V, offering high off-isolation of 36 dB at 1 GHz.
Read onlineAnalog Devices ADG936 specifications
| -3 dB Frequency | 4 GHz |
|---|---|
| Power Supply Voltage | 1.65 V to 2.75 V |
| Operating Temperature Range (Industrial) | -40°C to +85°C |
All Analog Devices ADG936 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available package types for this switch?
The ADG936 is available in a 20-lead TSSOP and a 4 mm x 4 mm LFCSP package.
What is the operating frequency range for this switch?
The device operates from DC up to a maximum of 2 GHz.
What is the off‑isolation of the ADG936 at 1 GHz?
The device provides 36 dB off‑isolation at 1 GHz.
What supply voltage range does the ADG936 support?
It operates from 1.65 V to 2.75 V.
