Start here

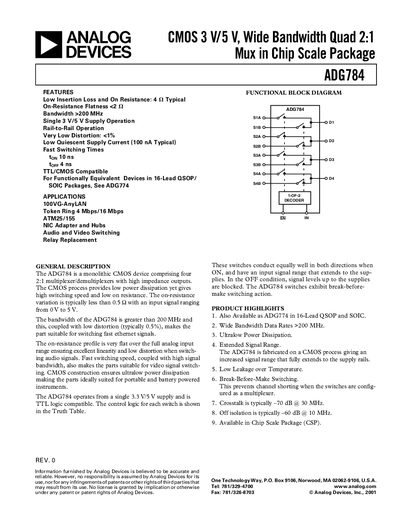

Analog Devices ADG784 Datasheet
The ADG784 is a monolithic CMOS device that provides four 2:1 multiplexers/demultiplexers with high‑impedance outputs. It operates from a single 3.3 V or 5 V supply, offers rail‑to‑rail operation, and features low insertion loss, low on‑resistance (typical 2.2 Ω) and very low quiescent current (≈100 nA). The device’s bandwidth exceeds 200 MHz, making it suitable for fast Ethernet, audio and video signal switching.
Typical applications include Ethernet adapters, token‑ring networks, audio/video switching, relay replacement, and other high‑speed signal routing tasks. The ADG784’s break‑before‑make switching, low crosstalk (≈‑75 dB) and good off‑isolation (≈‑65 dB) ensure reliable performance in portable and battery‑powered instruments.
Analog Devices ADG784 specifications
| Bandwidth (‑3 dB) | 240 MHz typ |
|---|---|
| Input High Voltage (Vih) | 2.4 V min |
| Input Low Voltage (Vil) | 0.8 V max |
| Off Isolation | -65 dB typ at 10 MHz |
| Channel‑to‑Channel Crosstalk | -75 dB typ at 10 MHz |
| Supply Voltage | 3.3 V or 5 V single supply |
| Power‑Down Leakage (Source OFF) | +0.01 nA typ |
Source: Analog Devices ADG784 Datasheet
All Analog Devices ADG784 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What bandwidth does the ADG784 provide?
The device offers a bandwidth greater than 200 MHz, with a typical -3 dB point of 240 MHz.
What supply voltages can be used with the ADG784?
It operates from a single 3.3 V or 5 V supply.
What supply voltage does the ADG784 operate from?
It operates from a single 3 V or 5 V supply.
What is the typical on‑resistance of the ADG784?
The typical on‑resistance is 2.2 Ω.
