Key facts
- Brand
- Analog Devices
- Model
- ADG811
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-05
Start here

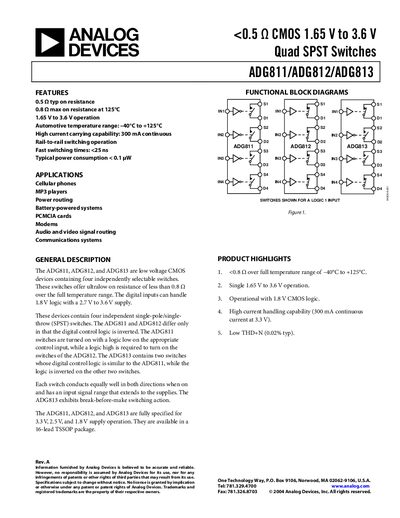

Analog Devices ADG811/ADG812/ADG813 Quad SPST Switches Datasheet
Datasheet 16 pages · 392 KB · EN
The document describes the ADG811, ADG812, and ADG813 devices, which are low voltage CMOS components containing four independently selectable single-pole/single-throw (SPST) switches. These devices offer ultralow on-resistance of less than 0.8 Ω over a full temperature range from -40°C to +125°C.
Read onlineAnalog Devices ADG811 specifications
| On Resistance (Ron) | < 0.8 Ω max at 125°C |
|---|---|
| Supply Voltage Range | 1.65 V to 3.6 V |
| Operating Temperature Range (Automotive) | -40°C to +125°C |
| Continuous Current Capability | 300 mA at 3.3 V |
| Switching Time (ton) | < 25 ns typ |
Source: Analog Devices ADG811/ADG812/ADG813 Quad SPST Switches Datasheet
All Analog Devices ADG811 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the on-resistance of these switches?
The typical on resistance is less than 0.5 Ω, with a maximum of 0.8 Ω at 125°C.
From: Analog Devices ADG811/ADG812/ADG813 Quad SPST Switches Datasheet
What logic levels are required to control the switches?
The digital inputs can handle 1.8 V logic with a supply voltage between 2.7 V and 3.6 V.
From: Analog Devices ADG811/ADG812/ADG813 Quad SPST Switches Datasheet
