Start here

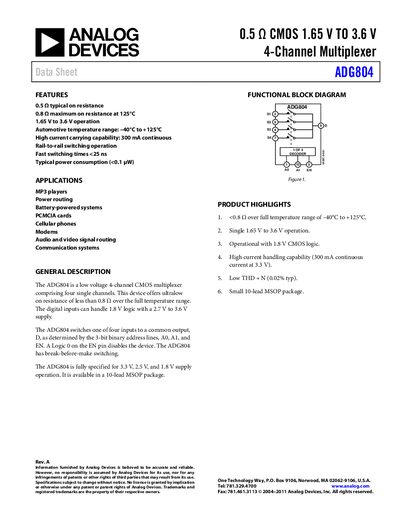

Analog Devices ADG804 Product Handbook Rev A
The ADG804 is a 4‑channel CMOS analog switch that routes one of four inputs to a common output. It operates from 1.65 V to 3.6 V supply and supports 1.8 V logic levels. The device features break‑before‑make switching, low on‑resistance (<0.8 Ω) across the full –40 °C to +125 °C temperature range, and a continuous current capability of 300 mA.
The handbook provides detailed specifications, absolute maximum ratings, pin configuration, typical performance curves, and application notes for use in MP3 players, battery‑powered systems, PCMCIA cards, cellular phones, modems, and audio/video routing.
Analog Devices ADG804 specifications
| Typical On‑Resistance (Ron) | 0.5 Ω |
|---|---|
| Maximum On‑Resistance (Ron) | 0.8 Ω |
| Supply Voltage Range | 1.65 V to 3.6 V |
| Operating Temperature Range | -40 °C to +125 °C |
| Continuous Current Capability | 300 mA |
| Switching Time | <25 ns |
| Typical Power Consumption | <0.1 pW |
| Leakage Current (Source Off, typical) | 0.1 nA |
All Analog Devices ADG804 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical on‑resistance of the ADG804?
The typical on‑resistance is 0.5 Ω.
What temperature range can the ADG804 operate in?
It operates from –40 °C up to +125 °C.
What supply voltage range does the ADG804 support?
The device operates from 1.65 V up to 3.6 V.
From: Analog Devices ADG804 4‑Channel CMOS Multiplexer Datasheet
What is the typical on‑resistance of the ADG804?
Typical on‑resistance is 0.5 Ω.
From: Analog Devices ADG804 4‑Channel CMOS Multiplexer Datasheet
