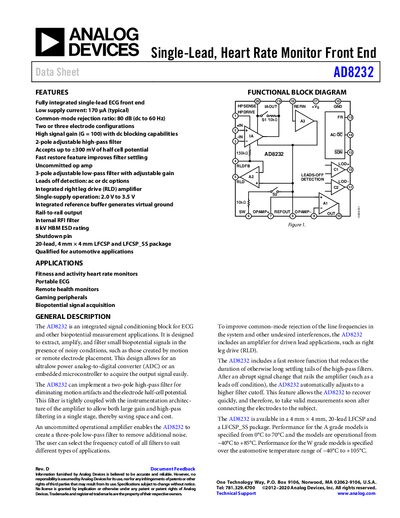

Analog Devices AD8232 Datasheet
The AD8232 is an integrated signal‑conditioning block designed for single‑lead ECG and other biopotential measurements. It provides a fully integrated front‑end with low supply current, high common‑mode rejection, configurable high‑ and low‑pass filters, and a right‑leg‑drive amplifier.
The datasheet includes full specifications, absolute maximum ratings, pin descriptions, typical performance curves, and application notes such as heart‑rate measurement, motion‑artifact reduction, and packaging information for the 20‑lead LFCSP and LFCSP_SS packages.
Analog Devices AD8232 specifications
| Supply Current (Typical) | 170 µA |
|---|---|
| Common-Mode Rejection Ratio | 80 dB dc to 60 Hz |
| Supply Voltage Range | 2.0 V to 3.5 V |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 20-lead LFCSP |
Source: Analog Devices AD8232 Single-Lead Heart Rate Monitor Front End Data Sheet
All Analog Devices AD8232 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply current of the AD8232?
The AD8232 typically draws 170 µA of supply current.
What is the common‑mode rejection ratio of the AD8232?
The device provides an 80 dB CMRR from DC to 60 Hz.
What is the typical supply current of the AD8232?
The typical supply current is 170 µA.
From: Analog Devices AD8232 Single-Lead Heart Rate Monitor Front End Data Sheet
What are the operating temperature limits for this device?
The device operates from -40°C to +85°C.
From: Analog Devices AD8232 Single-Lead Heart Rate Monitor Front End Data Sheet
