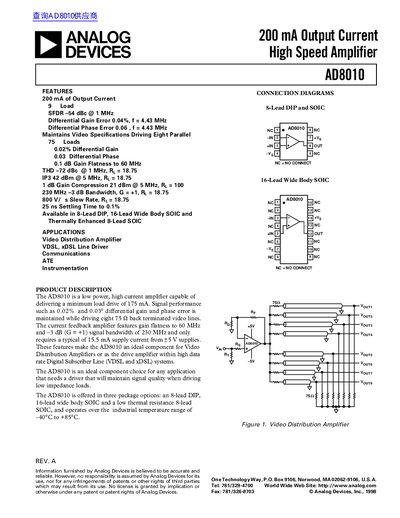

ANALOG DEVICES AD8010 200 mA Output Current High Speed Amplifier handbook
The AD8010 is a low power, high current amplifier capable of delivering a minimum load drive of 175 mA while maintaining signal performance such as 0.02% differential gain error and 0.03° differential phase error when driving eight parallel 75 Ω loads. It features a -3 dB bandwidth of 230 MHz with unity gain and an 800 V/µs slew rate, making it suitable for video distribution amplifiers and high data rate Digital Subscriber Line (VDSL) systems.
Read onlineAnalog Devices AD8010 specifications
| Output Current (Min) | 175 mA |
|---|---|
| -3 dB Bandwidth (G=+1) | 230 MHz |
| Slew Rate | 800 V/µs |
| Settling Time (to 0.1%) | 25 ns |
| Operating Temperature Range | -40°C to +85°C |
Source: ANALOG DEVICES AD8010 200 mA Output Current High Speed Amplifier handbook
All Analog Devices AD8010 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum output current this amplifier can deliver?
The AD8010 is capable of delivering a minimum load drive of 175 mA.
From: ANALOG DEVICES AD8010 200 mA Output Current High Speed Amplifier handbook
How many parallel video lines can the device maintain specifications for?
The amplifier maintains video specifications while driving eight parallel 75 ohm loads.
From: ANALOG DEVICES AD8010 200 mA Output Current High Speed Amplifier handbook
What is the maximum output current of the AD8010?
The AD8010 can deliver up to 200 mA of output current.
What supply voltage does the AD8010 require?
It operates from a ±5 V supply.
What is the maximum output current of the AD8010?
The AD8010 can deliver up to 200 mA of output current.
Which package options are available for the AD8010?
It is offered in 8‑lead DIP, 16‑lead wide‑body SOIC, and thermally enhanced 8‑lead SOIC packages.
