Start here

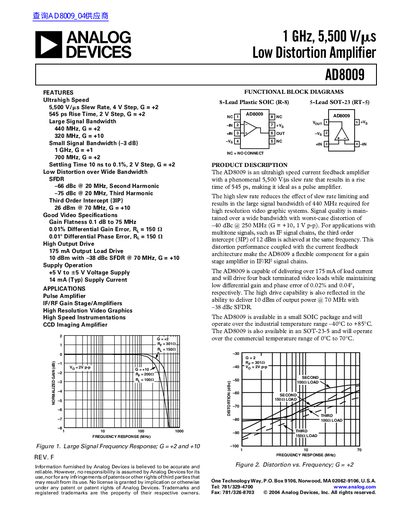

ANALOG DEVICES AD8009 1 GHz 5 500 V/ s low distortion amplifier handbook(1)
The AD8009 is an ultrahigh speed current feedback amplifier featuring a phenomenal 5,500 V/us slew rate and a small signal bandwidth of 1 GHz at unity gain. It is designed for applications requiring high resolution video graphics, pulse amplification, and IF/RF gain stages where low distortion over a wide bandwidth is critical.
The device offers excellent drive capability, delivering up to 175 mA of load current while maintaining low differential gain and phase errors. It is available in an 8-Lead Plastic SOIC package for industrial temperature ranges (-40°C to +85°C) and a 5-Lead SOT-23 package for commercial temperatures (0°C to 70°C).
Analog Devices AD8009 specifications
| Slew Rate (G=+2, 4V Step) | 5,500 V/us |
|---|---|
| Small Signal Bandwidth (G=+1) | 1 GHz |
| Large Signal Bandwidth (G=+2) | 440 MHz |
| Output Load Drive | 175 mA |
| Operating Temperature (Industrial) | -40°C to +85°C |
Source: ANALOG DEVICES AD8009 1 GHz 5 500 V/ s low distortion amplifier handbook(1)
All Analog Devices AD8009 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rise time of the AD8009?
The device has a rise time of 545 ps for a 2 V step at G = +2.
From: ANALOG DEVICES AD8009 1 GHz 5 500 V/ s low distortion amplifier handbook(1)
What is the third order intercept (3IP) at 70 MHz?
The third order intercept is 26 dBm when operating with a gain of +10.
From: ANALOG DEVICES AD8009 1 GHz 5 500 V/ s low distortion amplifier handbook(1)
What is the small signal bandwidth of the AD8009?
The small signal bandwidth (-3 dB) is 1 GHz at a gain of +1.
From: ANALOG DEVICES AD8009 1 GHz 5 500 V/ low distortion amplifier handbook(1)
What is the maximum supply voltage for the AD8009?
The absolute maximum rating for supply voltage is 12.6 V.
From: ANALOG DEVICES AD8009 1 GHz 5 500 V/ low distortion amplifier handbook(1)
What is the slew rate of the AD8009?
The AD8009 has a slew rate of 5,500 V/µs.
How much output current can the AD8009 drive?
It can deliver over 175 mA of load current.
