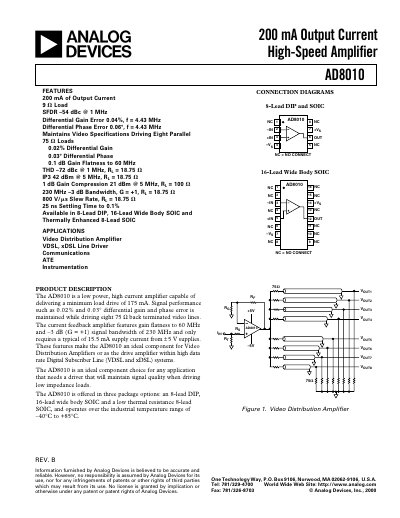

The AD8010 is a low power, high current amplifier capable of delivering a minimum load drive of 175 mA. Signal performance such as 0.02% and 0.03° differential gain and phase error is maintained while driving eight 75 Ω back terminated video lines. The current feedback amplifier features gain flatness to 60 MHz and –3 dB (G = +1) signal bandwidth of 230 MHz and only requires a typical of 15.5 mA supply current from ±5 V supplies. These features make the AD8010 an ideal component for Video Distribution Amplifiers.
The AD8010 is a low‑power, high‑current current‑feedback amplifier capable of delivering a minimum load drive of 175 mA (200 mA typical) while maintaining tight differential gain (0.02 %) and phase (0.03°) errors across eight parallel 75 Ω video loads. It offers gain flatness to 60 MHz, a –3 dB bandwidth of 230 MHz, and a slew rate of 800 V/µs, all from a ±5 V supply with a typical quiescent current of 15.5 mA. The device is supplied in 8‑lead DIP, 16‑lead wide‑body SOIC, and low‑thermal‑resistance 8‑lead SOIC packages and operates over an industrial temperature range of –40 °C to +85 °C.
Designed for video distribution amplifiers and high‑data‑rate DSL line drivers, the AD8010 requires careful PCB layout and power‑supply bypassing to preserve its performance. The datasheet includes recommended non‑inverting closed‑loop configurations, bypass capacitor values, and guidelines for driving capacitive loads, as well as example circuits for N‑channel video distribution and differential line drivers using two AD8010 devices.
| Output Current | 200 mA |
|---|---|
| Gain Flatness | to 60 MHz |
| Supply Voltage Range | ±5 V |
| Operating Temperature Range | –40 °C to +85 °C |
| Package Options | 8‑lead DIP, 16‑lead wide‑body SOIC, low‑thermal‑resistance 8‑lead SOIC |
The AD8010 can deliver up to 200 mA of output current.
It operates from a ±5 V supply.
It is available in 8‑lead DIP, 16‑lead wide‑body SOIC, and a low‑thermal‑resistance 8‑lead SOIC.
