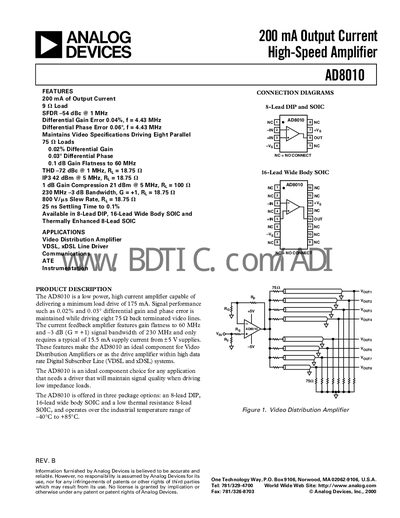

The AD8010 is a low power, high current amplifier capable of delivering a minimum load drive of 175 mA. Signal performance such as 0.02% and 0.03° differential gain and phase error is maintained while driving eight 75 Ω back terminated video lines. The current feedback amplifier features gain flatness to 60 MHz and –3 dB (G = +1) signal bandwidth of 230 MHz and only requires a typical of 15.5 mA supply current from ±5 V supplies. These features make the AD8010 an ideal component for Video Distribution Amplifiers or other low power applications.
The AD8010 is a low‑power, high‑current current‑feedback amplifier designed for video distribution and high‑speed data‑rate applications. It delivers up to 200 mA output current while maintaining low differential gain and phase error, 0.02 % gain error and 0.03° phase error across eight 75 Ω video loads. Key performance figures include a -3 dB bandwidth of up to 230 MHz at a gain of +1, a slew rate of 800 V/µs, and a settling time of 25 ns.
The device is offered in 8‑lead DIP, 16‑lead wide‑body SOIC, and thermally enhanced 8‑lead SOIC packages and operates over an industrial temperature range of –40 °C to +85 °C. Typical applications are video distribution amplifiers and VDSL/xDSL line drivers. Proper PCB layout, supply bypassing, and optional series resistance for capacitive loads are recommended to preserve high‑speed performance.
| Output Current | 200 mA |
|---|---|
| -3 dB Bandwidth (G=+1) | 230 MHz |
| Operating Temperature Range | -40 °C to +85 °C |
The AD8010 can deliver up to 200 mA of output current.
It is offered in 8‑lead DIP, 16‑lead wide‑body SOIC, and thermally enhanced 8‑lead SOIC packages.
The -3 dB bandwidth is approximately 230 MHz at a gain of +1.
