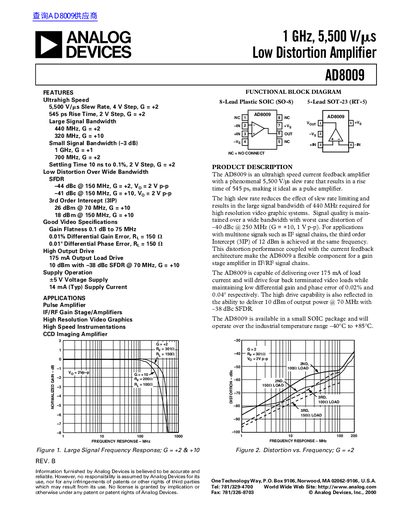

The AD8009 is a high performance single-channel low distortion amplifier that utilizes a phenomenal 5500 V/µs slew rate to achieve a rise time of 545 ps, making it ideal for pulse amplification applications.
The AD8009 is an ultrahigh speed current feedback amplifier featuring a phenomenal 5,500 V/µs slew rate and a rise time of 545 ps. It is designed to be ideal for pulse amplification and high resolution video graphics applications.
The device maintains signal quality over a wide bandwidth with low distortion. Key specifications include a small signal bandwidth of 1 GHz at unity gain, large signal bandwidth up to 440 MHz, and the ability to drive four back-terminated video loads while maintaining low differential gain and phase error.
| Rise Time | 545 ps |
|---|---|
| Small Signal Bandwidth (-3 dB) | 1 GHz (G=+1) |
| Large Signal Bandwidth | 440 MHz (G=+2) |
| Supply Voltage | +5 V |
| Supply Current (Typ) | 14 mA |
| Operating Temperature Range | -40°C to +85°C |
The small signal bandwidth (-3 dB) is 1 GHz at a gain of +1.
The absolute maximum rating for supply voltage is 12.6 V.
The device is capable of delivering over 175 mA of load current.
