Start here

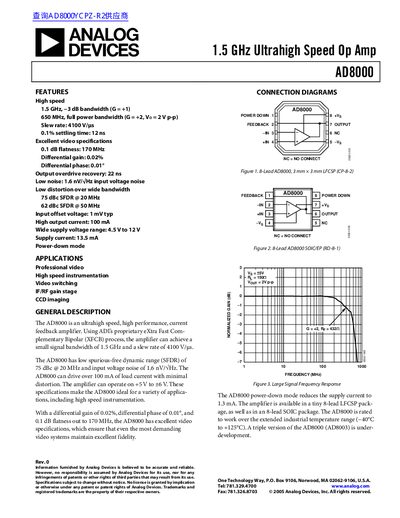

Analog Devices AD8000 Ultrahigh Speed Op Amp Datasheet
The document is a technical datasheet for the AD8000, an ultrahigh speed, high performance current feedback amplifier manufactured by Analog Devices. It utilizes the proprietary eXtra Fast Complementary Bipolar (XFCB) process to achieve a small signal bandwidth of 1.5 GHz and a slew rate of 4100 V/us.
Read onlineAnalog Devices AD8000 specifications
| -3 dB Bandwidth (G=+1) | 1.5 GHz |
|---|---|
| Slew Rate | 4100 V/us |
| Input Voltage Noise | 1.6 nV/VHz |
| Supply Current (Typical) | 13.5 mA |
| Operating Temperature Range | -40°C to +125°C |
Source: Analog Devices AD8000 Ultrahigh Speed Op Amp Datasheet
All Analog Devices AD8000 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the power-down current of the AD8000?
The amplifier reduces supply current to 1.3 mA in power-down mode.
From: Analog Devices AD8000 Ultrahigh Speed Op Amp Datasheet
What packages are available for the AD8000?
It is available in an 8-lead LFCSP package and an 8-lead SOIC package.
From: Analog Devices AD8000 Ultrahigh Speed Op Amp Datasheet
What is the power-down current of the AD8000?
The amplifier reduces supply current to approximately 1.3 mA in power-down mode.
From: Analog Devices AD8000 Ultrahigh Speed Op Amp Datasheet
What are the available package types for the AD8000?
The device is available in an 8-lead LFCSP and an 8-lead SOIC package.
From: Analog Devices AD8000 Ultrahigh Speed Op Amp Datasheet
What is the operating temperature range of the AD8000?
The device operates from –40 °C to +125 °C.
From: Analog Devices AD8000 Ultrahigh Speed Op Amp Datasheet
What is the maximum supply voltage rating?
The absolute maximum supply voltage is 12.6 V.
From: Analog Devices AD8000 Ultrahigh Speed Op Amp Datasheet
