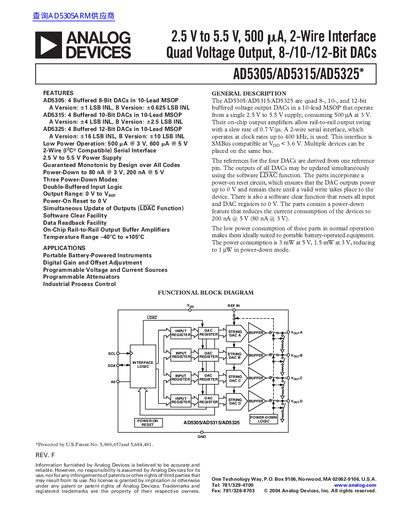

Analog Devices AD5305/AD5315/AD5325 Quad Voltage Output DAC Datasheet
The AD5305/AD5315/AD5325 are quad 8-, 10-, and 12-bit buffered voltage output DACs in a 10-lead MSOP package. They operate from a single 2.5 V to 5.5 V supply and feature on-chip output amplifiers that allow rail-to-rail output swing with a slew rate of 0.7 V/µs. The devices utilize a 2-wire serial interface compatible with SMBus at voltages below 3.6 V, allowing multiple devices to be placed on the same bus.
Read onlineAnalog Devices AD5305 specifications
| Resolution | 8 bits (AD5305), 10 bits (AD5315), 12 bits (AD5325) |
|---|---|
| Supply Voltage | 2.5 V to 5.5 V |
| Operating Temperature Range | -40°C to +105°C |
| Low Power Consumption | 500 pA @ 3 V |
| Slew Rate | 0.7 V/µs |
| Interface Type | 2-Wire I2C Compatible |
| Package Type | 10-Lead MSOP |
Source: Analog Devices AD5305/AD5315/AD5325 Quad Voltage Output DAC Datasheet
All Analog Devices AD5305 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum clock rate for the serial interface?
The interface operates at clock rates up to 400 kHz.
From: Analog Devices AD5305/AD5315/AD5325 Quad Voltage Output DAC Datasheet
Are the DAC outputs guaranteed to be monotonic?
Yes, the outputs are guaranteed monotonic by design over all codes.
From: Analog Devices AD5305/AD5315/AD5325 Quad Voltage Output DAC Datasheet
What supply voltage range does the AD5305/AD5315/AD5325 support?
The devices operate from 2.5 V to 5.5 V supply voltage.
From: Analog Devices AD5305/AD5315/AD5325 Quad DAC Datasheet Rev G
How many bits of resolution does the AD5305 provide?
The AD5305 provides 8‑bit resolution.
From: Analog Devices AD5305/AD5315/AD5325 Quad DAC Datasheet Rev G
