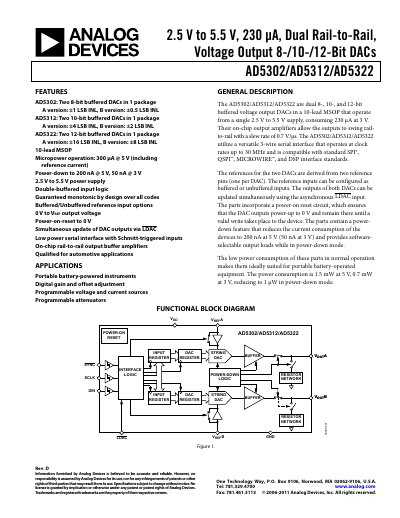

Analog Devices AD5302/AD5312/AD5322 Dual‑Channel DAC Datasheet
The AD5302/AD5312/AD5322 family are dual 8‑, 10‑ and 12‑bit buffered voltage‑output DACs in a 10‑lead MSOP package. They operate from a single 2.5 V to 5.5 V supply, provide rail‑to‑rail outputs, and feature a low‑power serial interface compatible with SPI, QSPI, MICROWIRE and DSP standards.
The document includes detailed specifications, timing characteristics, absolute maximum ratings, pin descriptions, typical performance graphs, outline dimensions and an ordering guide. Automotive‑qualified versions are also listed, with separate part numbers for RoHS‑compliant and automotive‑grade devices.
Analog Devices AD5312 specifications
| Supply voltage range | 2.5 V to 5.5 V |
|---|---|
| Normal‑mode current consumption | 300 µA @ 5 V |
| Power‑down current | 200 nA @ 5 V, 50 nA @ 3 V |
| Serial interface speed | up to 30 MHz clock rate |
Source: Analog Devices AD5302/AD5312/AD5322 Dual‑Channel DAC Datasheet
All Analog Devices AD5312 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the AD5302/AD5312/AD5322 require?
The devices operate from a single supply of 2.5 V to 5.5 V.
From: Analog Devices AD5302/AD5312/AD5322 Dual‑Channel DAC Datasheet
How much current does the DAC draw in normal operation?
Typical current consumption is 300 µA when powered at 5 V.
From: Analog Devices AD5302/AD5312/AD5322 Dual‑Channel DAC Datasheet
What supply voltage range do the AD5302/AD5312/AD5322 operate from?
They operate from a single supply of +2.5 V to +5.5 V.
What is the maximum short‑circuit output current?
The devices can source up to 50 mA in a short‑circuit condition.
