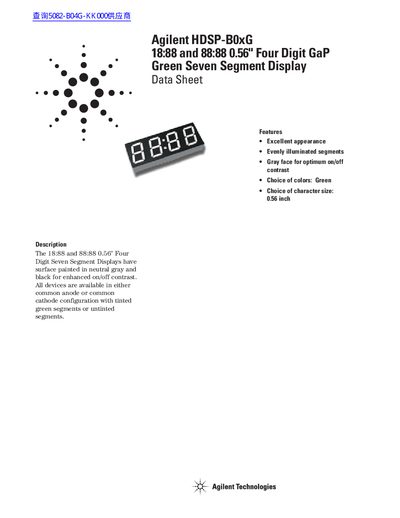

Agilent HDSP-B0xG 18:88/88:88 0.56" GaP Green Seven Segment Display Datasheet
This datasheet describes the Agilent HDSP-B0xG series of 0.56-inch four-digit GaP green seven segment displays. The devices are available in both 18:88 and 88:88 configurations with either common anode or common cathode options. They feature gray or black surfaces for enhanced contrast and are offered with tinted or untinted green segments.
Read onlineAgilent HDSP-B0XG specifications
| Character Size | 0.56 inch |
|---|---|
| Display Type | GaP Green Seven Segment |
| Operating Temperature Range | -40 to +105 °C |
| Forward Voltage/Segment | 1.80 to 2.60 V |
| Peak Wavelength | 568 nm |
| Dominant Wavelength | 573 nm |
| Luminous Intensity (B01G-B04G) | 2000 to 3200 mcd |
| Luminous Intensity (B05G-B10G) | 3200 to 4500 mcd |
Source: Agilent HDSP-B0xG 18:88/88:88 0.56" GaP Green Seven Segment Display Datasheet
All Agilent HDSP-B0XG documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available display configurations?
The displays are available in either 18:88 or 88:88 configurations.
From: Agilent HDSP-B0xG 18:88/88:88 0.56" GaP Green Seven Segment Display Datasheet
Are common anode and common cathode versions available?
Yes, all devices are available in either common anode or common cathode configuration.
From: Agilent HDSP-B0xG 18:88/88:88 0.56" GaP Green Seven Segment Display Datasheet
What configurations are available for the HDSP-B0xG displays?
They are offered in either common anode or common cathode configurations, with tinted green or untinted segments and a gray face for contrast.
What is the operating temperature range of the HDSP-B0xG series?
The devices operate from –40 °C up to +105 °C.
What configurations are available for the HDSP-B0xG displays?
They are offered in either common anode or common cathode configurations, with tinted green or untinted segments.
What is the maximum forward current per segment?
The maximum forward current per segment or DP is 100 mA.
