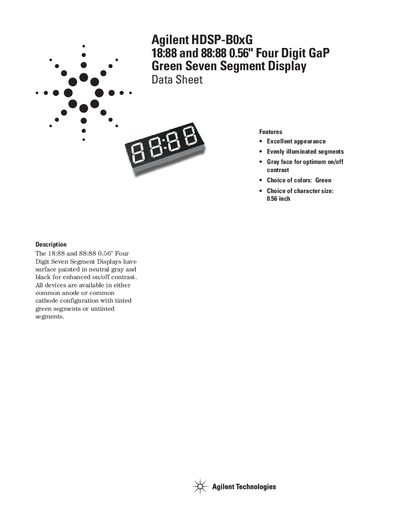

This datasheet provides the specifications of 18:88 and 88:88 0.56-inch four-digit seven-segment displays, including the display features, dimensions, pin configuration, etc.
The HDSP‑B0xG series are 0.56 inch four‑digit GaP green seven‑segment displays with a neutral gray face for high on/off contrast. They are offered in common anode or common cathode configurations and can have tinted green or untinted segments.
The datasheet lists mechanical dimensions, pin assignments, absolute maximum ratings, and detailed electrical/optical specifications such as forward voltage, luminous intensity, and wavelength. It also includes recommended cleaning agents and contact information for technical support.
| Average Power per Segment or DP | 65 mW |
|---|---|
| Peak Forward Current per Segment or DP | 100 mA |
| DC Forward Current per Segment or DP | 25 mA |
| Operating Temperature Range | -40 to +105 °C |
| Reverse Voltage per Segment or DP | 5 V |
| Forward Voltage per Segment or DP | 1.80 – 2.60 V |
| Peak Wavelength | 568 nm |
The displays are offered in either common anode or common cathode configuration, with tinted green or untinted segments.
The forward voltage per segment ranges from 1.80 V (minimum) to 2.60 V (maximum).
The device operates from –40 °C up to +105 °C.
