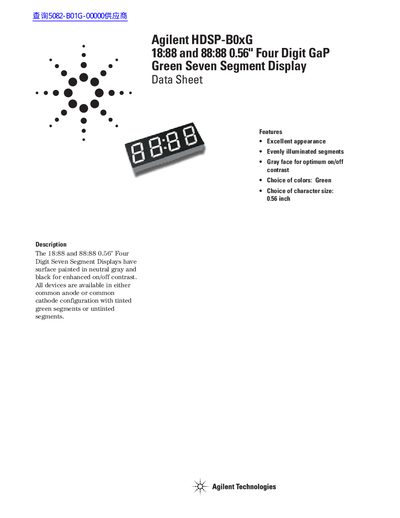

This document is HDSP-B0xG 18:88 and 88:88 0.56 inch Four Digit GaP Green Seven Segment Display Data Sheet.
The HDSP-B0xG family provides 0.56‑inch four‑digit seven‑segment LED displays with a gray face for optimal on/off contrast. Devices are offered in either common anode or common cathode configurations and may have tinted green or untinted segments.
Key specifications include a typical forward voltage of 2.20 V per segment at 20 mA, peak forward current of 100 mA, luminous intensity of 2000‑3200 cd at 10 mA, and an operating temperature range of –40 °C to +105 °C. Detailed pin assignments and internal circuit diagrams are provided for each variant.
| Character size | 0.56 inch |
|---|---|
| Luminous intensity (typical) | 2000–3200 cd at 10 mA |
| Forward voltage (typical) | 2.20 V at 20 mA |
| Peak forward current per segment | 100 mA |
| Operating temperature range | -40 °C to +105 °C |
| Reverse voltage per segment | 5 V |
| Average power per segment | 65 mW |
| Peak wavelength | 568 nm |
| Dominant wavelength | 573 nm |
They are offered in either common anode or common cathode configurations, with tinted green or untinted segments and a gray face for contrast.
The devices operate from –40 °C up to +105 °C.
The typical forward voltage is 2.20 V per segment at a test current of 20 mA.
