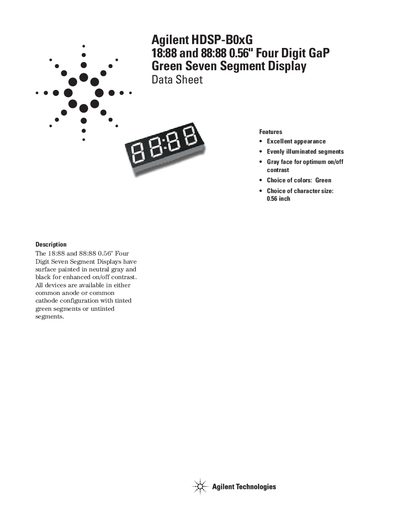

The 18:88 and 88:88 0.56-inch four-digit seven-segment displays have surface painted in neutral gray and black for enhanced on/off contrast. All devices are available in either common anode or common cathode configuration with tinted green segments or untinted segments.
The HDSP-B0xG series from Agilent includes four‑digit, 0.56‑inch green seven‑segment displays available in common anode or common cathode configurations, with tinted or untinted segments. Variants such as B01G, B02G, B03G, etc., cover both 18:88 and 88:88 display formats.
Key specifications include luminous intensity of 2000‑3200 cd at 10 mA, forward voltage between 1.80 V and 2.60 V (20 mA), peak forward current of 100 mA per segment, and an operating temperature range of –40 °C to +105 °C. The datasheet also details package dimensions, pin assignments, and recommended cleaning agents for the LED package.
| Display size | 0.56 inch |
|---|---|
| Luminous intensity (typical) | 2000‑3200 cd at 10 mA |
| Peak forward current per segment | 100 mA |
| Operating temperature range | -40 °C to +105 °C |
| Average power per segment | 65 mW |
| Peak wavelength | 568 nm |
| Dominant wavelength | 573 nm |
They are offered in either common anode or common cathode configurations, with tinted green or untinted segments.
The maximum forward current per segment or DP is 100 mA.
The device operates from –40 °C up to +105 °C.
Typical luminous intensity is 2000‑3200 cd at 10 mA per segment.
