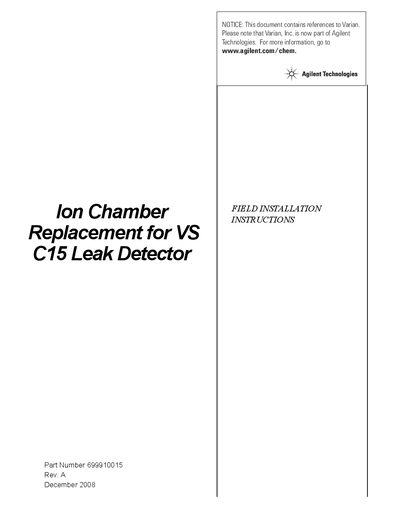

Agilent Ion Chamber Replacement for VS C15 Leak Detector Field Installation Instructions
This document provides field installation instructions for replacing the ion chamber on a Varian (now Agilent) VS C15 Leak Detector. It includes important safety notices regarding solvents, static electricity, and high voltage, as well as specific guidelines for handling O-rings and vacuum grease.
The manual details the equipment required for the procedure, such as metric Allen wrenches, ESD-safe gloves, and a torque wrench. The installation steps cover disconnecting power, venting the turbo pump, removing the unit top and spectrometer cover, and replacing the internal components.
All Agilent C15 documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What solvents are recommended for cleaning the leak detector?
Recommended solvents include VacuSolv, isopropyl alcohol (IPA), or Dow Corning OS-20.
From: Agilent Ion Chamber Replacement for VS C15 Leak Detector Field Installation Instructions
What type of gloves should be worn during maintenance?
Non-powdered, ESD-safe Nitride or equivalent gloves must be worn to prevent skin oils from getting on internal components.
From: Agilent Ion Chamber Replacement for VS C15 Leak Detector Field Installation Instructions
What solvents are recommended for cleaning the leak detector?
Varian recommends VacuSolv solvent, or alternatively isopropyl alcohol (IPA) or Dow Corning OS-20.
From: Agilent VS C15 Calibrated Leak Replacement Field Installation Instructions
What type of gloves should be worn when servicing the unit?
Non-powdered, ESD-safe Nitride or equivalent gloves must be worn to prevent skin oils from getting on internal components.
From: Agilent VS C15 Calibrated Leak Replacement Field Installation Instructions
What tools are required to open the unit's top cover?
You need an M4 Allen wrench and a Philips head screwdriver.
From: Varian VS C15 Leak Detector Filament Replacement Field Instructions
How long must you wait after disconnecting power before opening the unit?
You must wait 30 seconds for the high voltage to dissipate.
From: Varian VS C15 Leak Detector Filament Replacement Field Instructions
