Key facts
- Brand
- Agilent
- Model
- CT-100
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-07
Start here

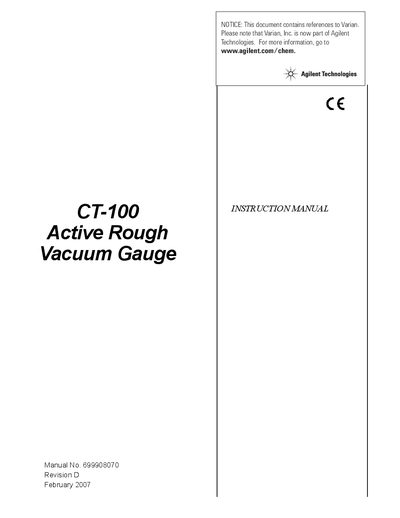

Varian CT-100 Active Rough Vacuum Gauge Installation Manual
The document serves as an instruction manual for the Varian CT-100 Active Rough Vacuum Gauge. It covers essential topics including EMC warnings, safety information, and specific installation requirements such as vacuum system configuration and electrical connections.
Key sections guide users through factory calibration verification, setup procedures using necessary tools, and how to connect the gauge to various systems. The manual also details how to calibrate the gauge at intermediate pressures, set alarms, perform cleaning routines, and troubleshoot common issues.
All Agilent CT-100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the warranty period for this vacuum gauge?
The product is warranted against defects in materials and workmanship for twelve (12) months from the date of shipment.
From: Varian CT-100 Active Rough Vacuum Gauge Installation Manual
What must be included when making a warranty claim?
Claims must include the Product serial number, the date of shipment, and a full description of the circumstances giving rise to the claim.
From: Varian CT-100 Active Rough Vacuum Gauge Installation Manual
What is the purpose of the L7439301 Pin Adapter?
The adapter enables installing a Varian CT-100 Active Rough Vacuum Gauge into systems using an Edwards gauge without removing the existing cable.
From: Agilent Technologies Edwards ATC APG to Varian CT-100 Pin Adapter Field Instruction Sheet
Which signal is not available when using this adapter?
The gauge ID signal is not available because the CT-100 does not support it.
From: Agilent Technologies Edwards ATC APG to Varian CT-100 Pin Adapter Field Instruction Sheet
