Key facts
- Brand
- Agilent
- Model
- BA-550
- Industry
- Industrial
- Documents
- 3
- Languages
- EN
- Last added
- 2012-06-07
Start here

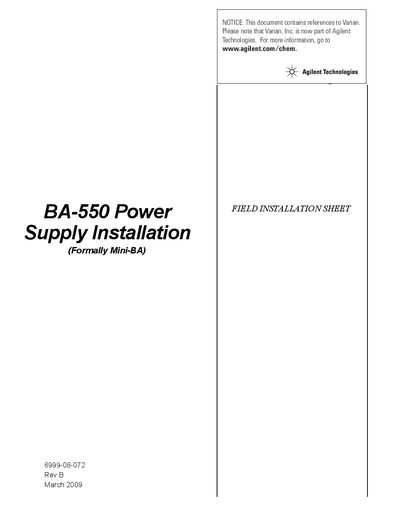

Varian BA-550 Power Supply Installation Sheet
The Varian BA-550 Power Supply is designed to deliver DC power required to operate a single BA-550 unit from worldwide voltages. The system arrives pre-wired for DC power delivery, but includes an external R2180301 power supply that requires connection via a 15-pin Dsub connector and an IEC power cord.
Read onlineAll Agilent BA-550 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What power cord is included with the BA-550 installation kit?
The package includes a US grounded style 115 VAC cord.
How long must a returned product be received after the RA number is issued?
The product must be received within 15 business days.
What power cord is included with the BA-550 installation kit?
A US grounded style 115 VAC cord is included in the package.
What type of connector must be plugged into the BA-550 for power?
You must plug a 15 pos Dsub connector into the unit.
What tools are required to replace the BA-550 tube?
You need a 3/32 Allen wrench and needle nose pliers.
From: Agilent BA-550 Tube Replacement Procedure Service Manual
What should be done with the old tube after removal?
The old tube and wires must be discarded.
From: Agilent BA-550 Tube Replacement Procedure Service Manual
