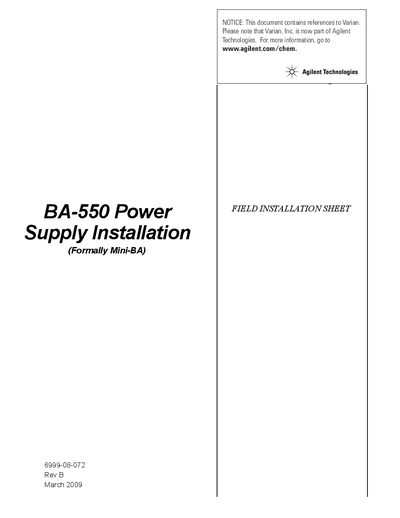

Varian BA-550 Power Supply Installation Sheet

About this manual

This document provides field installation procedures for the Varian BA-550 Power Supply (formerly Mini-BA). It details how to connect the external R2180301 power supply system using a US grounded 115 VAC cord and a 15-pin Dsub connector. The guide explains that the unit powers up automatically when plugged into an AC outlet, as there is no power switch on the supply itself.

What's inside

• Installation
• Additional I/O install
• Technical Assistance
• Return Instructions

Frequently asked questions

What power cord is included with the BA-550 installation kit?

A US grounded style 115 VAC cord is included in the package.

What type of connector must be plugged into the BA-550 for power?

You must plug a 15 pos Dsub connector into the unit.

How long does it take for the BA-550 to power up after plugging in?

The unit powers up immediately when plugged into a wall outlet.
