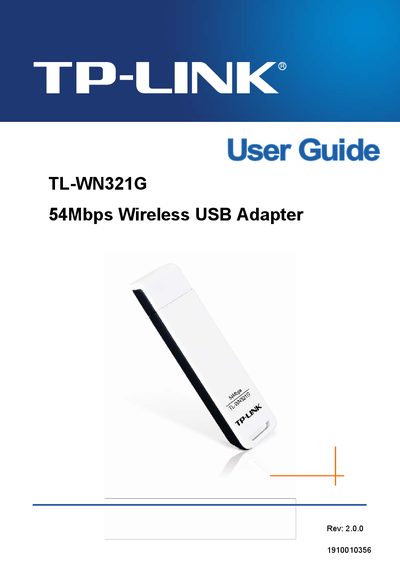

TP-LINK TL-WN321G 54Mbps Wireless USB Adapter User Guide
This guide covers the TL-WN321G 54Mbps Wireless USB Adapter, a USB‑2.0 pen‑size device that supports IEEE 802.11b/g networks. It explains the product’s features, security options, and LED status indicators.
The manual includes chapters on hardware and software installation, utility configuration, AP mode for various Windows versions, example applications, and a full specifications appendix.
TP-Link TL-WN321G specifications
| Interface | A‑type USB 2.0 connector |
|---|---|
| Standards | IEEE 802.11b / IEEE 802.11g |
| Operating System | Windows 98SE, Me, 2000, XP |
| Transmission Distance | Indoor up to 100 m, outdoor up to 300 m |
| Radio Data Rate | 54 Mbps (auto‑rate sensing) |
| Transmit Power | 22 dBm (typical) |
| Frequency | 2.4 – 2.4835 GHz |
| Power Consumption | 480 mA TX, 420 mA RX |
| Operating Temperature | 0 °C to 40 °C |
| Dimensions | 3.4 × 1.0 × 0.5 in (86 × 26 × 12 mm) |
All TP-Link TL-WN321G documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- TP-LINK TL-WN321G Wireless USB Adapter User Manual 22 p
- TP-Link TL-WN321G Wireless USB Adapter User Guide 23 p
- TP-LINK TL-WN321G 54M Wireless USB Adapter User Guide(2)
- TP-Link TL-WN321G Wireless USB Adapter User Guide 23 p
- TP-LINK TL-WN321G 54Mbps Wireless USB Adapter User Guide 41 p
- TP-Link TL-WN321G 54M Wireless USB Adapter User Guide 31 p
- TP-Link TL-WN321G/TL-WN321G+ User Manual 19 p
Questions answered in these manuals
Which Windows operating systems are supported by the TL‑WN321G?
The adapter works with Windows 98SE, Windows Me, Windows 2000, and Windows XP.
What is the maximum wireless data rate of the TL‑WN321G?
It can transmit up to 54 Mbps, with auto‑rate sensing for lower speeds as needed.
Which operating systems are supported?
The adapter works with Windows 98SE, Windows Me, Windows 2000, and Windows XP.
What is included in the package?
The box contains one TL‑WN321G USB Wireless Adapter, a USB extension cable, a Quick Installation Guide, and a resource CD with utilities and drivers.
What wireless standards does the TL-WN321G support?
It complies with IEEE802.11g and IEEE802.11b standards.
How do I install the driver software for the adapter?
Insert the Resource CD, run Setup.exe from the CD-ROM, and follow the Setup Wizard prompts.
