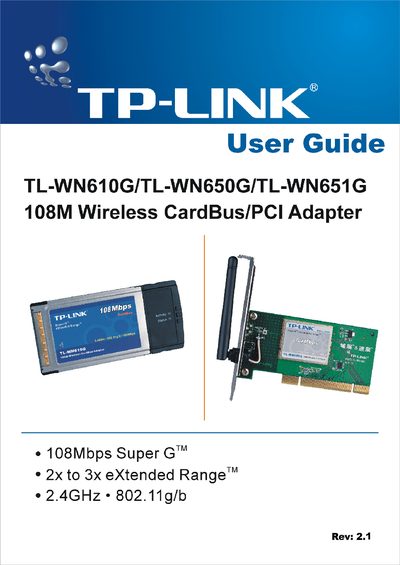

TP-Link TL-WN610G/TL-WN650G/TL-WN651G Wireless Network Card User Guide
The TP‑Link TL‑WN610G/TL‑WN650G/TL‑WN651G series provides 108 Mbps Super G wireless connectivity with 2‑ to 3‑times extended range for PCs and notebooks. The adapters support 802.11g/b operation, WPA/WEP security, and work with Windows 98SE, Me, 2000 and XP.
This guide includes hardware and software installation steps, LED status explanations, profile management, diagnostics, and a specifications appendix. It also contains regulatory information (FCC, CE) and contact details for technical support.
TP-Link TL-WN610G specifications
| Wireless Standard | IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | 32-bit Cardbus |
| Wireless Signal Rates | 11g: 108/54/48/36/24/18/12/9/6 Mbps; 11b: 11/5.5/3/2/1 Mbps |
| Frequency Range | 2.4‑2.4835 GHz |
| Transmit Power | 17 dBm (MAX) |
| Modulation Type | 1M DBPSK, 2M DOPSK, 5.5M/11M CCK, 6M‑54M OFDM |
| Receiver Sensitivity | 108M: -68 dBm@10% PER; 54M: -68 dBm@10% PER; 11M: -85 dBm@8% PER; 6M: -88 dBm@10% PER; 1M: -90 dBm@8% PER |
| Antenna Type | Internal omni‑directional |
| Security | 64/128/152‑bit WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK (TKIP/AES) |
| Range | Indoors up to 200 m, Outdoors up to 830 m |
| Supported Operating Systems | Windows 2000, XP, Vista |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Storage Temperature | -40 °C – 70 °C (-40 °F – 158 °F) |
| Dimensions | 4.5 × 2.1 × 0.2 in (115 × 54 × 5 mm) |
Source: TP-Link TL-WN610G 108Mbps Wireless Cardbus Adapter User Manual
All TP-Link TL-WN610G documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What operating systems are supported by the TL‑WN610G?
The adapter works with Windows 2000, Windows XP, and Windows Vista.
From: TP-Link TL-WN610G 108Mbps Wireless Cardbus Adapter User Manual
What is the maximum wireless data rate of the TL‑WN610G?
It can achieve up to 108 Mbps on 802.11g networks.
From: TP-Link TL-WN610G 108Mbps Wireless Cardbus Adapter User Manual
What is the maximum wireless speed of the TL‑WN610G/TL‑WN650G/TL‑WN651G adapters?
The adapters can achieve up to 108 Mbps data transfer rate.
From: TP-Link TL-WN610G/TL-WN650G/TL-WN651G Wireless Network Card User Guide
Which Windows operating systems are supported?
The adapters work with Windows 98SE, Windows Me, Windows 2000 and Windows XP.
From: TP-Link TL-WN610G/TL-WN650G/TL-WN651G Wireless Network Card User Guide
