Key facts
- Brand
- TP-Link
- Model
- TL-SG2109WEB
- Category
- Network Switches
- Industry
- Computers
- Documents
- 2
- Languages
- ZH · EN
- Last added
- 2012-03-20
Start here
TP-LINK TL-SG2109WEB/TL-SG2210WEB/TL-SG2218WEB/TL-SG2428WEB/TL-SG2452WEB Network Switches user manual
This is the User's Guide for the TP-Link Web Smart Gigabit Switch Family, covering the TL-SG2109WEB, TL-SL2210WEB, TL-SL2218WEB, TL-SL2428WEB and TL-SL2452WEB models. It is written for network administrators familiar with IT concepts and network terminology. Because the models share similar functions, the TL-SL2210WEB is used to illustrate the usage of the whole family.
The guide describes the package contents and the device, explains how to mount the switch on a desktop, shelf or rack and connect AC power, and describes the front panel, back panel and SFP module. It then explains the switch functions and the web management interface, including system, port, network, VLAN, trunking, priority, mirroring and virtual cable test settings. Appendices give the RJ-45 pin explanation, the table of factory defaults and a table of function differences between the family models.
TP-Link TL-SG2109WEB specifications
| Ports per model (TL-SG2109WEB, TL-SL2210WEB, TL-SL2218WEB, TL-SL2428WEB, TL-SL2452WEB) | 9, 10, 18, 28, 52 |
|---|---|
| Gigabit ports per model | 9, 2, 2, 4, 4 |
| SFP ports per model | 1, 1, 1, 2, 2 |
| Power consumption | 20W max, 9W max, 13W max, 20W max, 35W max |
| Default IP address | 192.168.0.1 |
| Default netmask | 255.255.255.0 |
| Default user name and password | supervisor / supervisor |
| Default aging time | 300 |
All TP-Link TL-SG2109WEB documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

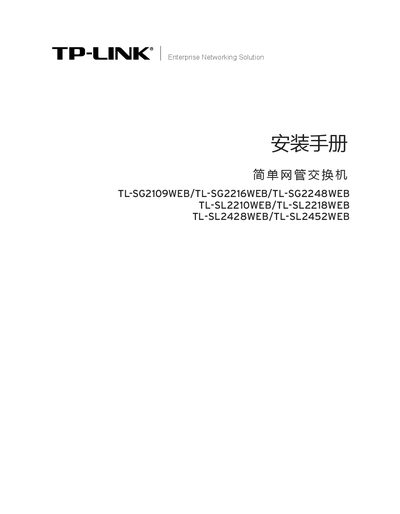

Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is the default management IP address?
The default management address is http://192.168.0.1.
How do I reset the switch to factory defaults?
Press and hold the Reset button for 5 seconds until all LEDs flash three times, then release.
What is the default IP address of the switch?
The factory default IP address is 192.168.0.1 with netmask 255.255.255.0, and the DHCP client is disabled by default.
What are the default login credentials?
The default user name is supervisor and the default password is supervisor.
