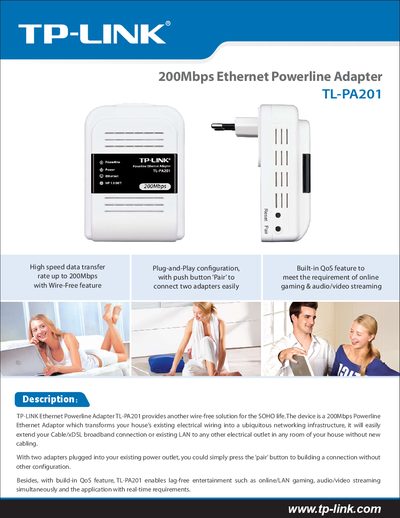

TP-Link TL-PA201 Powerline Ethernet Adapter Quick Installation Guide
The TL-PA201 is a 200 Mbps HomePlug AV powerline Ethernet adapter that turns any AC outlet into a network entry point. It provides plug‑and‑play installation, a push‑button Pair function, and built‑in QoS for lag‑free gaming and video streaming.
The guide covers hardware specifications, security (128‑bit AES), supported operating systems, power consumption, and regulatory certifications. It also includes a quick start checklist, LED indicators, and troubleshooting tips.
TP-Link TL-PA201 specifications
| Maximum data transfer rate | 200 Mbps |
|---|---|
| Ethernet LAN ports | 1 |
| Standard | HomePlug AV 200Mbps |
| Interface | IEEE 802.3 10/100M Ethernet |
| Security | 128‑bit AES encryption |
| Supported OS | Windows 98 SE, 2000, XP, Vista |
| Certifications | CE, RoHS compliant |
| Weight | 165 g |
| Operating temperature | +0 °C ~ +60 °C |
| Operating humidity | 10 % ~ 90 % RH |
| Dimensions (L×W×H) | 104 mm × 71 mm × 38 mm |
| Transmission range | up to 200 m |
| Plug type | EU, UK, AU (replaceable) |
Source: TP-Link TL-PA201 Powerline Ethernet Adapter Quick Installation Guide
All TP-Link TL-PA201 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
How do I pair two TL-PA201 adapters?
Plug both adapters into power outlets and press the ‘pair’ button on each unit to establish a connection without any additional configuration.
From: TP-Link TL-PA201 Powerline Ethernet Adapter Quick Installation Guide
What security encryption does the TL-PA201 use?
The adapter secures powerline communications with 128‑bit AES encryption.
From: TP-Link TL-PA201 Powerline Ethernet Adapter Quick Installation Guide
How do I install the TL-PA201 Powerline Ethernet Adapter?
Simply plug the adapter into a power socket, connect an Ethernet cable to the RJ‑45 port, and the device will start working without any additional setup.
From: TP-LINK TL-PA201 200Mbps Powerline Ethernet Adapter Manual
What is the maximum data rate of the TL-PA201?
The adapter can transmit data at speeds of up to 200 Mbps.
From: TP-LINK TL-PA201 200Mbps Powerline Ethernet Adapter Manual
Do I need a traditional modem when using the TL-PA201 powerline adapter?
Yes, a traditional modem or broadband connection is required to access the internet.
Can a single TL-PA201 be used alone?
No, at least two adapters are required for operation.
