Key facts
- Brand
- TP-Link
- Model
- TL-SL3226P
- Category
- Network Switches
- Industry
- Computers
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-05-08
Start here

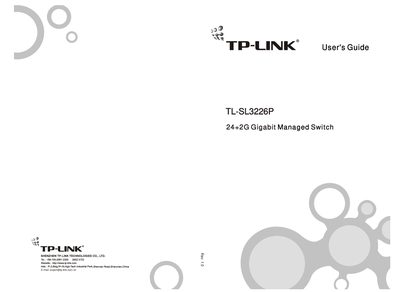

TP-Link TL-SL3226P Managed Switch User's Guide
This guide introduces the TL‑SL3226P 24+2G Gigabit Managed Switch, describing its compliance with IEEE802.3, its 19‑inch rack‑mountable design, and the range of management functions such as SNMP, Web, Telnet and console access. It also outlines the switch’s hardware features, including 24 Ethernet ports, two independent extension slots, and VLAN capabilities.
The manual is organized into chapters covering product overview, detailed specifications, installation procedures (desktop, shelf, rack), TELNET/Out‑of‑Band and Web management, as well as annexes for RJ‑45 pin assignments and default configuration settings. It provides step‑by‑step instructions, wiring diagrams, and default network parameters to help users set up and operate the switch efficiently.
TP-Link TL-SL3226P specifications
| Ethernet ports | 24 10/100Mbps RJ‑45 ports with auto‑MDI/MDIX |
|---|---|
| Extension slots | 2 independent 100/1000Mbps extension slots |
| Console port | One RS232 console port |
| VLAN support | Maximum 26 port‑based VLANs and 256 IEEE802.1Q VLAN IDs |
| Trunk groups | Maximum 7 trunk groups of up to 4 member ports |
| Power input | 110‑260 V ~ 50‑60 Hz |
| Dimensions | 440 mm × 260 mm × 44 mm (W × H × L) |
| Operating temperature | 0 °C ~ 40 °C |
| Storage temperature | -20 °C ~ 70 °C |
| Default IP address | 192.168.0.1 |
All TP-Link TL-SL3226P documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many Ethernet ports does the TL‑SL3226P have?
The TL‑SL3226P provides 24 10/100Mbps RJ‑45 ports with auto‑MDI/MDIX.
What management methods are supported by the switch?
The switch can be managed via SNMP, Web interface, Telnet, and a console (RS232) connection.
How many RJ‑45 ports does the TL‑SL3226P have?
The switch provides 24 10/100 Mbps RJ‑45 ports.
What management interfaces are supported by the TL‑SL3226P?
It supports SNMP, Web browser, Telnet, and out‑of‑band RS‑232 management.
