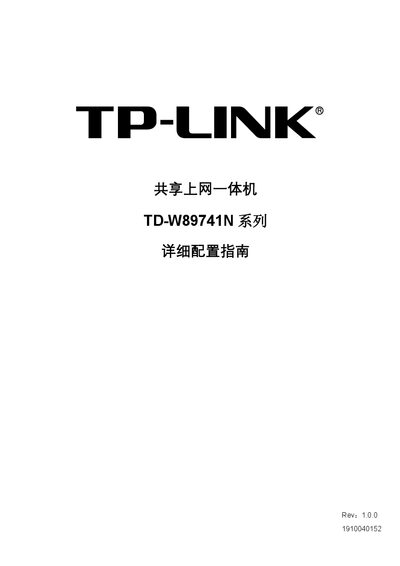

TP-Link TD-W89741N Shared Internet Router User Manual
The manual introduces the TD-W89741N shared‑internet router, describing its hardware layout, indicator LEDs, ports, and built‑in features such as ADSL2+, 150 Mbps 802.11n Wi‑Fi, NAT, DHCP, and security functions. It also outlines the product’s specifications, supported standards, and environmental requirements.
Detailed chapters guide users through quick installation, step‑by‑step configuration of WAN/LAN, wireless settings, DHCP, virtual servers, parental controls, and advanced features like QSS security, VPN passthrough, and firmware upgrades. Appendices cover common FAQs, Internet Explorer configuration, and a full specifications table. This manual is written in Chinese.
TP-Link TD-W89741N specifications
| Supported Wi‑Fi Standards | IEEE 802.11b / 802.11g / 802.11n |
|---|---|
| Frequency Range | 2.4 – 2.4835 GHz |
| Maximum Wireless Data Rate | 150 Mbps (802.11n) |
| LAN Ports | 3 × 10/100 Mbps auto‑MDI/MDIX RJ45 |
| WAN/LAN Port | 1 × 10/100 Mbps auto‑MDI/MDIX RJ45 (WAN/LAN) |
| Antenna Count | 1 (omnidirectional dipole) |
| Operating Temperature | 0 °C – 40 °C |
Source: TP-Link TD-W89741N Shared Internet Router User Manual
