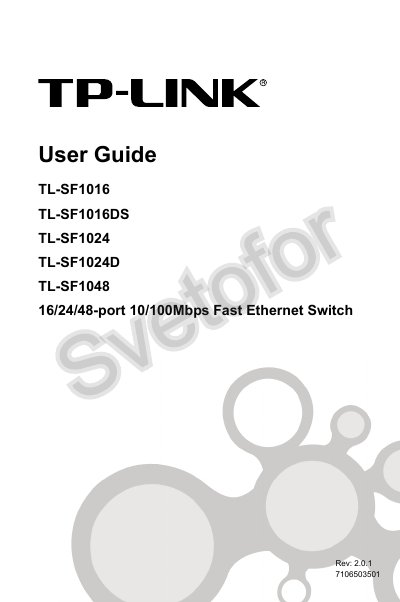

TP-Link TL-SF1016, TL-SF1016DS, TL-SF1024, TL-SF1024D, TL-SF1048 Fast Ethernet Switch User Manual
The TP-Link TL‑SF1016 series includes five Fast Ethernet Switch models (TL‑SF1016, TL‑SF1016DS, TL‑SF1024, TL‑SF1024D, TL‑SF1048) offering 16, 24 or 48 auto‑negotiating 10/100 Mbps RJ‑45 ports. The switches comply with IEEE 802.3/802.3u standards, support auto‑MDI/MDIX, and feature LED indicators for power, link/activity, and 100 Mbps status.
The guide provides detailed instructions for safe installation on a desktop or standard 19‑inch rack, wiring, grounding, and power‑on procedures, as well as a full specification table and troubleshooting tips for common LED and connectivity issues.
TP-Link TL-SF1016 specifications
| TL‑SF1016 dimensions | 11.57 × 7.1 × 1.73 in |
|---|---|
| TL‑SF1024 dimensions | 17.3 × 7.1 × 1.73 in |
| TL‑SF1048 dimensions | 17.3 × 10.2 × 1.73 in |
| Power supply | 100‑240 V~ 50‑60 Hz (internal universal) |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Number of ports | 16/24/48 10/100Mbps Auto‑Negotiation RJ‑45 ports |
Source: TP-Link TL-SF1016 TL-SF1024 TL-SF1048 Fast Ethernet Switch User's Guide
All TP-Link TL-SF1016 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What should I do if the Power LED is not lit?
Make sure the AC power cord is properly connected and that the power source is turned on.
From: TP-Link TL-SF1016 TL-SF1024 TL-SF1048 Fast Ethernet Switch User's Guide
What are the operating temperature limits for these switches?
They operate between 0 °C and 40 °C (32 °F to 104 °F).
From: TP-Link TL-SF1016 TL-SF1024 TL-SF1048 Fast Ethernet Switch User's Guide
How many ports does the TL‑SF1016 series provide?
The series offers 16, 24, or 48 auto‑negotiating 10/100 Mbps RJ‑45 ports, depending on the model.
From: TP-Link TL-SF1016, TL-SF1016DS, TL-SF1024, TL-SF1024D, TL-SF1048 Fast Ethernet Switch User Manual
How can the switch be installed in a rack?
Unplug the power cord, then mount the switch in a standard 19‑inch EIA rack following the rack‑installation instructions provided in the manual.
From: TP-Link TL-SF1016, TL-SF1016DS, TL-SF1024, TL-SF1024D, TL-SF1048 Fast Ethernet Switch User Manual
