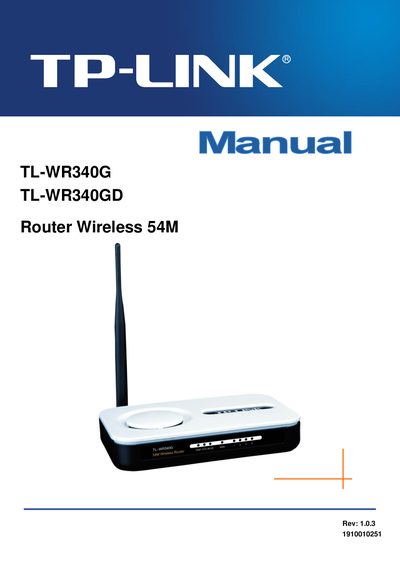

TP-Link TL-WR340G/TL-WR340GD Wireless Router 54Mbps User Guide
This manual provides step‑by‑step instructions for installing and configuring the TP‑Link TL‑WR340G/TL‑WR340GD wireless router. It includes hardware setup, software configuration, wireless security settings, and troubleshooting tips.
The document also lists technical specifications such as supported wireless standards, data rates, frequency range, port configuration, operating temperature, and security protocols, helping users understand the capabilities of the device.
TP-Link TL-WR340GD specifications
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.11b and IEEE 802.11g |
|---|---|
| LED Indicators | Power, SYS, WLAN, WAN, 1‑4 |
| Ports | One 10/100M WAN RJ45 port, Four 10/100M LAN RJ45 ports (Auto‑MDIX) |
| Frequency | 2400–2483.5 MHz |
| Channels | 13 |
| Media Access Protocol | CSMA/CA with ACK |
| Security | WEP, WPA, WPA2 |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 10%–90% RH, non‑condensing |
| Storage Humidity | 5%–90% RH, non‑condensing |
Source: TP-Link TL-WR340G/TL-WR340GD Wireless Router User Manual
All TP-Link TL-WR340GD documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the difference between the TL‑WR340G and TL‑WR340GD models?
The TL‑WR340G has a fixed antenna, while the TL‑WR340GD features a detachable antenna.
From: TP-Link TL-WR340G/TL-WR340GD Wireless Router User Manual
How many LAN ports does the router provide?
The router includes four 10/100 Mbps Auto‑Negotiation LAN RJ45 ports that support Auto‑MDIX.
From: TP-Link TL-WR340G/TL-WR340GD Wireless Router User Manual
