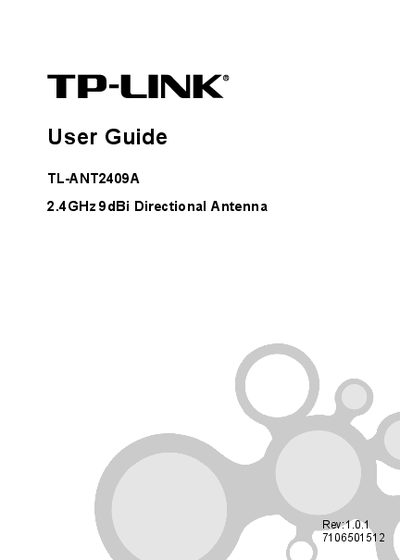

TP-Link TL-ANT2409A Antenna User Guide
User Manual 6 pages · 828 KB · EN
The TL-ANT2409A is a 2.4 GHz directional antenna with a 9 dBi gain, designed for indoor and outdoor Wi‑Fi deployments. It features a RP‑SMA male connector, a CFD‑200 coaxial cable, and an ABS cover.
The document lists electrical and physical specifications, shows the antenna’s field pattern, and describes two installation methods – wall mounting and pole mounting – with the required hardware and steps.
TP-Link TL-ANT2409A specifications
| Frequency Range | 2.4GHz ~ 2.5GHz |
|---|---|
| Impedance | 50Ω |
| VSWR (max) | 1.92 |
| Return Loss (max) | -10dB |
| Gain | 9dBi |
| Admitted Power | 1W |
| Connector | RP‑SMA Plug (male) |
| Operating Temperature | -20℃ ~ +65℃ |
