Key facts
- Brand
- TP-Link
- Model
- WR340G
- Documents
- 5
- Languages
- ZH
- Last added
- 2012-05-08
Start here

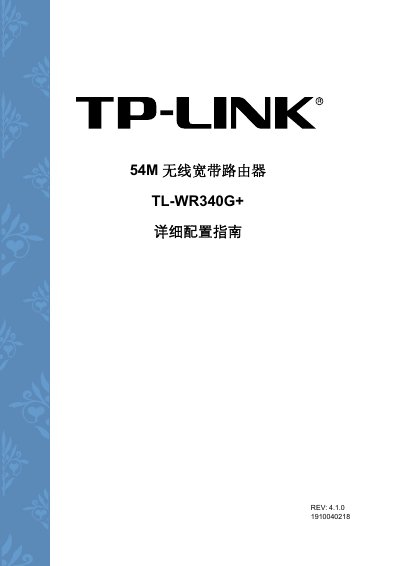

TP-Link TL-WR340G+ Wireless Broadband Router Detailed Configuration Manual
This guide explains how to install and configure the TL‑WR340G+ wireless broadband router. It covers hardware layout, connection steps, initial setup, and the web‑based interface for managing network parameters, security settings, and advanced features.
Additional sections provide system tools for firmware upgrades, backup/restore, and detailed FAQs on common issues such as resetting the device, locating MAC addresses, and configuring wireless security. This manual is written in Chinese.
TP-Link WR340G specifications
| Wireless Standards | IEEE 802.11b/g |
|---|---|
| Frequency Range | 2.4 – 2.4835 GHz |
| WAN Ports | 1 × 10/100 Mbps RJ45 (Auto MDI/MDIX) |
| LAN Ports | 4 × 10/100 Mbps RJ45 (Auto MDI/MDIX) |
| Maximum Transmission Power | 18 dBm (max) |
| Antenna | 1 × dipole omnidirectional |
| Dimensions (L×W×H) | 182 mm × 128 mm × 35 mm |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10 % to 90 % RH (non‑condensing) |
| Storage Humidity | 5 % to 90 % RH (non‑condensing) |
Source: TP-Link TL-WR340G+ Wireless Broadband Router Detailed Configuration Manual
All TP-Link WR340G documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How do I reset the TL‑WR340G+ to factory defaults?
Press and hold the QSS/RESET button for more than five seconds while the router is powered on; release when the system status LED changes from slow to fast flashing.
From: TP-Link TL-WR340G+ Wireless Broadband Router Detailed Configuration Manual
What wireless security encryption does the router support?
It supports 64/128/152‑bit WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK, as well as TKIP and AES encryption.
From: TP-Link TL-WR340G+ Wireless Broadband Router Detailed Configuration Manual
How do I enable the PSP wireless function?
Make sure the PSP wireless indicator is lit before proceeding.
From: TP-Link WR641G/WR642G/WR541G/WR542G/WR340G Wireless Router PSP Connection Installation Guide
How do I select the connection mode for the PSP?
In Network Settings, choose the desired connection mode and then confirm the selection.
From: TP-Link WR641G/WR642G/WR541G/WR542G/WR340G Wireless Router PSP Connection Installation Guide
