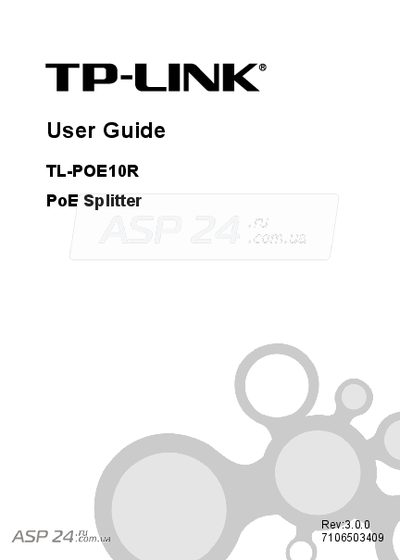

TP-LINK TL-POE10R PoE Splitter User Guide
This guide introduces the TL-POE10R PoE Splitter, explains its compliance with IEEE 802.3af standards, and describes how it delivers 5 V, 9 V or 12 V DC to non‑PoE devices using a single Ethernet cable. It also lists the package contents and highlights key safety notices.
The manual details the external components, explains the power‑mode switch for selecting the output voltage, and provides step‑by‑step connection instructions for linking the splitter to a PoE source and to the target Ethernet device. An appendix supplies the full technical specifications and regulatory information.
TP-Link TL-POE10R specifications
| PoE Input Port | 1 10/100M Auto‑Negotiation RJ45 PoE port |
|---|---|
| LAN Output Port | 1 10/100M Auto‑Negotiation RJ45 LAN port |
| Power Socket | 1 DC output socket |
| Supported Standards | IEEE 802.3af, 10Base‑T, 100Base‑TX |
| Adjustable Output Voltage | 5 VDC or 12 VDC selectable |
| Maximum Power Delivery | 11.5 W at 5 VDC, 12 W at 12 VDC |
| Dimensions (W×D×H) | 3.2 × 2.0 × 0.9 in (81 × 52 × 24 mm) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
All TP-Link TL-POE10R documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What output voltages can be selected on the TL-POE10R?
The adapter provides an adjustable output of either 5 VDC or 12 VDC, selectable with a slide switch.
What is the maximum power the TL-POE10R can supply?
It can supply up to 11.5 W at 5 VDC or up to 12 W at 12 VDC.
What voltage outputs does the TL-POE10R provide?
It can output either 5 V DC or 12 V DC, selectable with the power‑mode switch.
How do I select the output voltage on the adapter?
Use the power‑mode switch; turning it left selects 5 V and right selects 12 V (default is 12 V).
What voltage outputs does the TL-POE10R provide?
It can output 5 V, 9 V, or 12 V DC.
How do I select the desired voltage output?
Use the power‑mode switch and turn it left or right to choose 12 V, 9 V, or 5 V.
