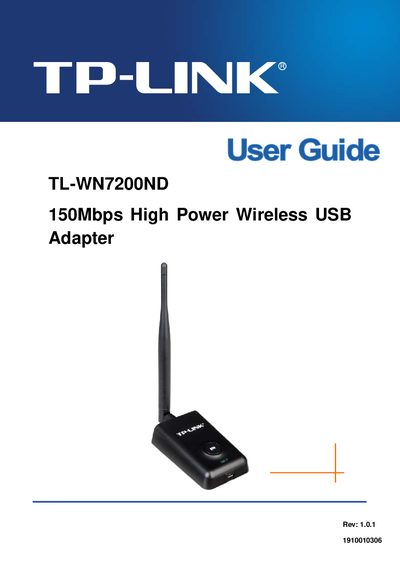

TP-Link TL-WN7200ND Wireless USB Adapter User Guide
This guide introduces the TL-WN7200ND 150Mbps High Power Wireless USB Adapter, covering its features, supported standards, and security options. It explains the package contents, hardware installation, driver installation from the included CD, and how to uninstall the software.
The manual also details configuration steps, including LED status interpretation, AP mode settings, and advanced options such as QSS and roaming. An appendix lists the full technical specifications, including interface, frequency, data rates, and environmental limits.
TP-Link TL-WN7200ND specifications
| Interface | Mini-USB Connector |
|---|---|
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Operating System | Windows 2000/ XP/ Vista/ 7 |
| Frequency | 2.4 ~ 2.4835 GHz |
| Radio Data Rate | Up to 150Mbps |
| Modulation | 11n OFDM, 11g OFDM, 11b CCK/DSSS |
| Media Access Protocol | CSMA/CA with ACK |
| Data Security | WPA, 64/128‑bit WEP, TKIP/AES, IEEE 802.1X authentication |
| Working Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Humidity | 10%~‑90% RH, non‑condensing |
All TP-Link TL-WN7200ND documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What does the LED on the adapter indicate?
The LED on the top of the card shows Link/Act status and blinks when data is being sent or received.
Which security protocols are supported?
The adapter supports WPA, 64/128‑bit WEP, TKIP/AES, and IEEE 802.1X authentication.
What is the maximum wireless speed of the TL‑WN7200ND?
The adapter supports up to 150 Mbps wireless data rates.
Which operating systems are supported by the TL‑WN7200ND?
It works with Windows 2000, Windows XP, Windows Vista, and Windows 7.
