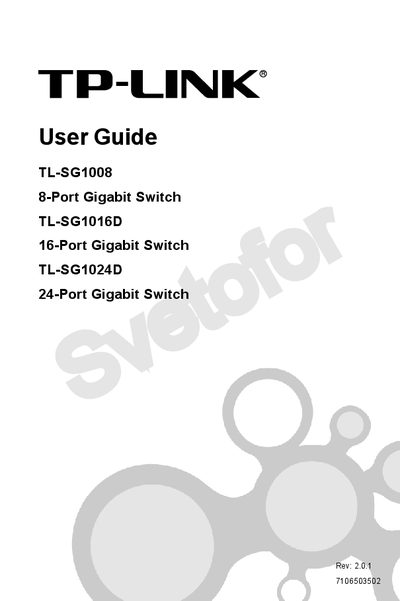

TP-LINK TL-SG1008 8-Port Gigabit Switch TL-SG1016D 16-Port Gigabit Switch User Guide
The TP-Link TL-SG1008, TL-SG1016D and TL-SG1024D are Gigabit Ethernet switches offering 8, 16 or 24 auto‑sense RJ45 ports with full‑duplex support, LED status indicators and plug‑and‑play operation. The guide describes product features, front and rear panel layouts, and basic specifications.
Installation instructions cover desktop and rack mounting, power connection, grounding, and safety precautions. The appendix provides troubleshooting steps for common LED indicators and cable length limits, as well as contact information for support.
TP-Link TL-SG1016D specifications
| Port Count and Speed | 8/16/24 10/100/1000Mbps Auto‑Sense RJ45 ports |
|---|---|
| Duplex Support | Full/Half Duplex for 10/100Mbps, Full Duplex for 1000Mbps |
| LED Indicators | Power, Link/Act, 1000Mbps speed LEDs |
| Form Factor | Desktop and rack‑mountable steel case |
| Power Supply | Internal power supply |
Source: TP-LINK TL-SG1008 8-Port Gigabit Switch TL-SG1016D 16-Port Gigabit Switch User Guide
All TP-Link TL-SG1016D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- TP-LINK TL-SG1008 8-Port Gigabit Switch TL-SG1016D 16-Port Gigabit Switch User Guide 16 p
- TP-LINK TL-SG1016D 16-Port Gigabit Switch TL-SG1024D 24-Port Gigabit Switch User Guide 16 p
- TP-LINK TL-SG1008 8-Port Gigabit Switch TL-SG1016D 16-Port Gigabit Switch TL-SG1024D 24-Port Gigabit Switch User Guide 16 p
Questions answered in these manuals
Why is the Power LED not lit?
Check that the AC power cord is properly connected and that the power source is turned on.
From: TP-LINK TL-SG1008 8-Port Gigabit Switch TL-SG1016D 16-Port Gigabit Switch User Guide
Why does the Link/Act LED stay off when a device is connected?
Make sure the cable connectors are firmly plugged into both the switch and the device, and verify that the connected device is powered on.
From: TP-LINK TL-SG1008 8-Port Gigabit Switch TL-SG1016D 16-Port Gigabit Switch User Guide
How do I power on the switch?
Connect the supplied AC power cord to the AC Power Socket on the rear panel and ensure the power source is turned on.
From: TP-LINK TL-SG1016D 16-Port Gigabit Switch TL-SG1024D 24-Port Gigabit Switch User Guide
What do the LED indicators mean?
The POWER LED lights solid red when the switch is powered. The Link/Act LED lights solid green for a link and flashes green during activity. The 1000Mbps LED lights solid green when the port operates at 1000 Mbps; it is off for 10/100 Mbps.
From: TP-LINK TL-SG1016D 16-Port Gigabit Switch TL-SG1024D 24-Port Gigabit Switch User Guide
What should I do if the Power LED is not lit?
Make sure the AC power cord is properly connected and the power source is turned on.
What does the Link/Act LED indicate?
It lights solid green when a device is connected and flashes green while data is being transmitted.
