Key facts
Start here

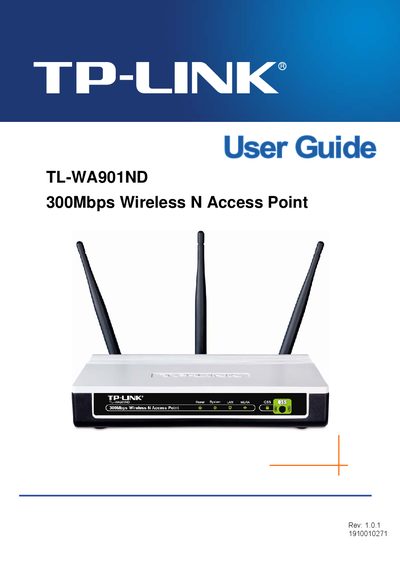

TP-Link TL-WA901ND Wireless N Access Point User Guide
This guide covers the TL-WA901ND 300 Mbps Wireless N Access Point, describing its hardware layout, installation steps, and basic requirements for home or office use. It also explains regulatory notices, package contents, and safety precautions.
The manual is organized into chapters on hardware installation, PC configuration, device configuration, wireless settings, security, DHCP, system tools, firmware upgrades, factory defaults, backup and restore, and troubleshooting. Appendices provide a glossary, specifications, and example applications.
TP-Link TL-WA901ND specifications
| Wireless transmission rate (802.11n) | Up to 300 Mbps |
|---|---|
| Wireless transmission rate (802.11g) | Up to 54 Mbps |
| Wireless transmission rate (802.11b) | Up to 11 Mbps |
| Frequency range | 2.4‑2.4835 GHz |
| Wireless transmit power (max) | 20 dBm |
| Antenna | Detachable omni‑directional, 3 dBi |
| Power supply | 12 VDC / 1 A Switching PSU |
| Operating temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Storage temperature | -40 °C ~ 70 °C (-40 °F ~ 158 °F) |
| Dimensions | 6.9 × 4.7 × 1.1 in (174 × 120 × 28.8 mm) |
| Ethernet port | One RJ45 supporting Passive PoE |
| Supported SSIDs | Up to 4 SSIDs |
| PoE capability | Supports up to 30 m of Power over Ethernet |
Source: TP-LINK TL-WA901ND 300Mbps Wireless N Access Point Manual
All TP-Link TL-WA901ND documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many SSIDs does the TL‑WA901ND support?
It supports up to four SSIDs.
From: TP-LINK TL-WA901ND 300Mbps Wireless N Access Point Manual
What is the maximum wireless transmission rate of the TL‑WA901ND?
The device can achieve up to 300 Mbps with 802.11n.
From: TP-LINK TL-WA901ND 300Mbps Wireless N Access Point Manual
